Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

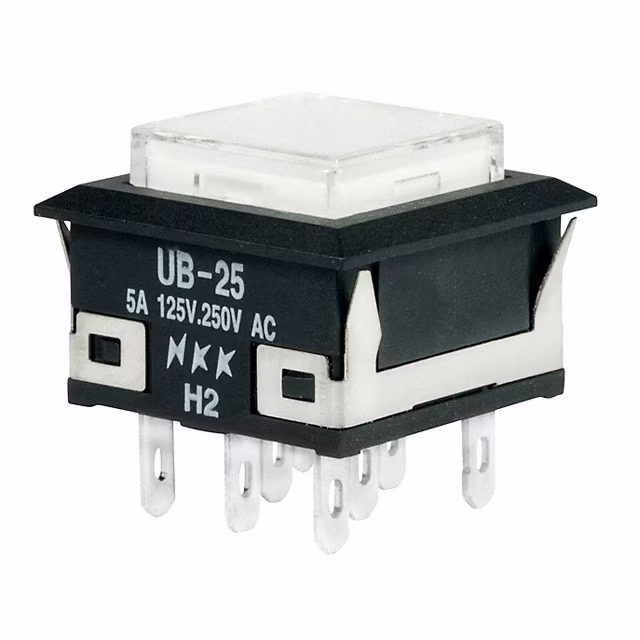

UB25KKW016B-JBSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,264 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 2.9 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
YB16WCKW01-6G-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,299 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB16WCKW01-6F-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,962 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
GB215APSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,635 |
|
Datasheet |
GB2 | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
GB215A2HSWITCH PUSH 2XSPST-NO 0.4VA 28V NKK Switches |
4,614 |
|
Datasheet |
GB2 | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO x 2 | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
GB215AP-BSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,602 |
|
Datasheet |
GB2 | Box | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|

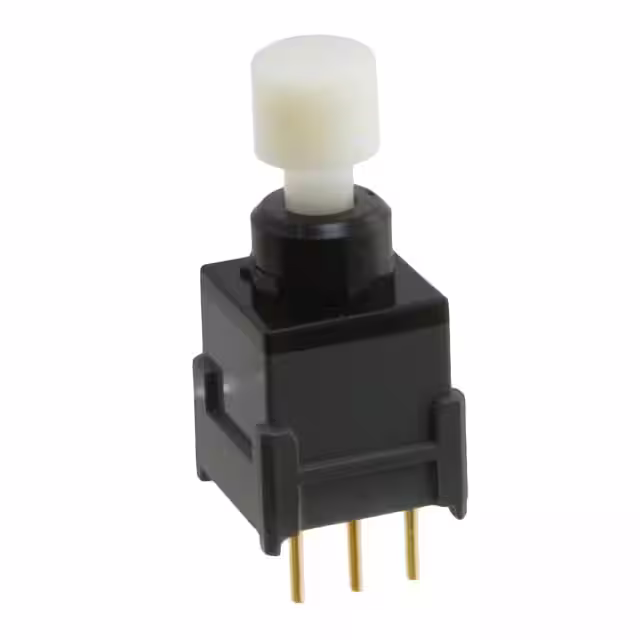

BB16AP-FBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,066 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
AB11BPSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
3,207 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

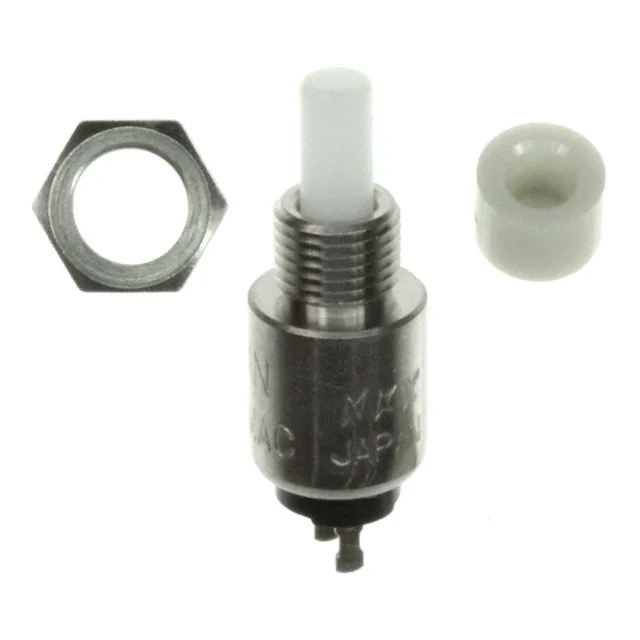

FB15ANEP2-FBSWITCH PUSH SPST-NO 0.5A 125V NKK Switches |
3,163 |
|
Datasheet |
FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|

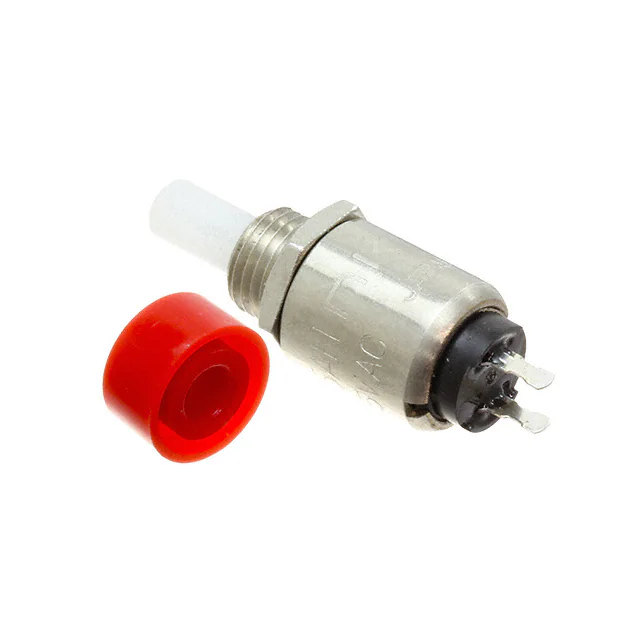

FB15ANEP2-HCSWITCH PUSH SPST-NO 0.5A 125V NKK Switches |
2,851 |
|
Datasheet |
FB | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
