Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB15SKW035C-JBSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,566 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKW035D-JBSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,974 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB15SKW035C-CCSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,433 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
HB16CKW01-GSWITCH PUSH SPDT 0.1A 30V NKK Switches |
3,139 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
UB25KKW01N-CSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,819 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
LP0115CCKW015CASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,643 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | LED, Red | 2.05 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -10°C ~ 50°C |
|
UB15RKW035DSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,460 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

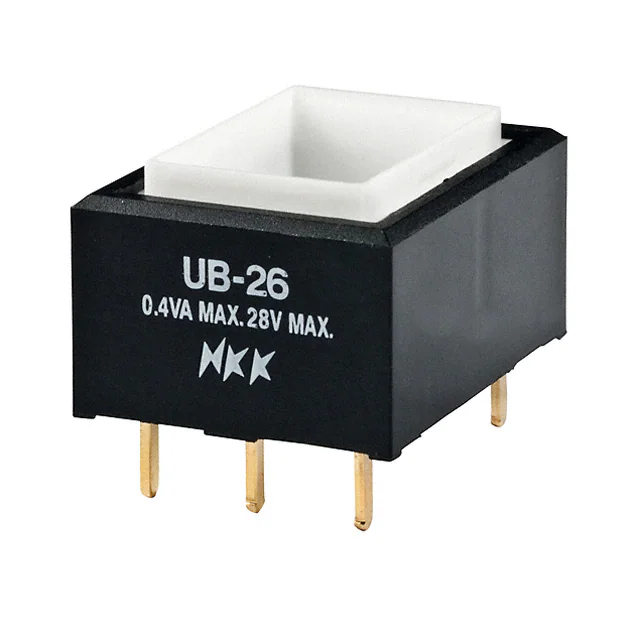

UB26RKG03NSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,857 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
|
HB15SKW01-CSWITCH PUSH SPDT 0.1A 30V NKK Switches |
2,195 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
UB25RKW035C-JCSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,207 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
