Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB25KKW015CSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,066 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
UB16KKW015C-CCSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,322 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
UB25KKW015FSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,871 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

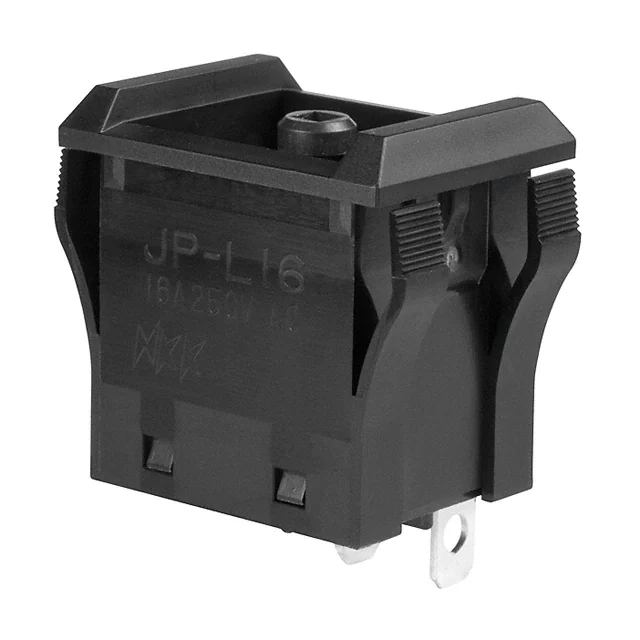

JPL16BSWITCH PUSH SPST 16A 125V NKK Switches |
1,707 |
|
Datasheet |
JP | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | - | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
KP0415ANG03RGBP-2SJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
4,716 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.1, 2.65, 2.9 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
UB15NBKG015CSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,459 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
UB15NKW015C-CCSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,564 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

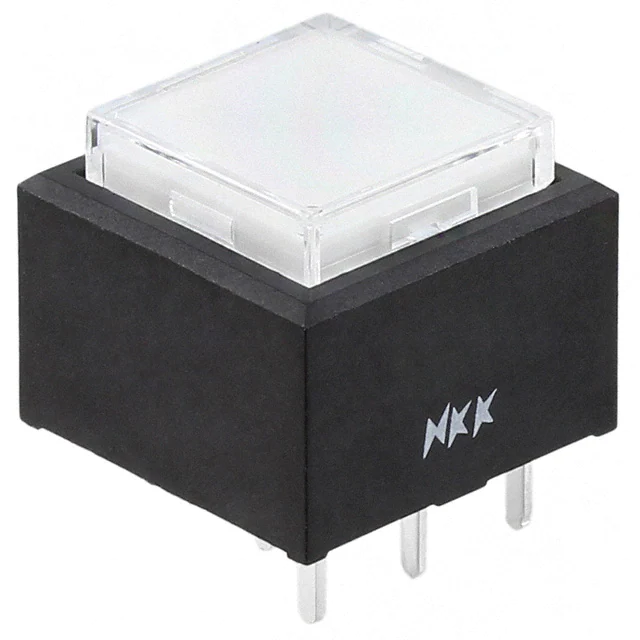

UB16SKW035D-JBSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,518 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15NKW015D-JDSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,692 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

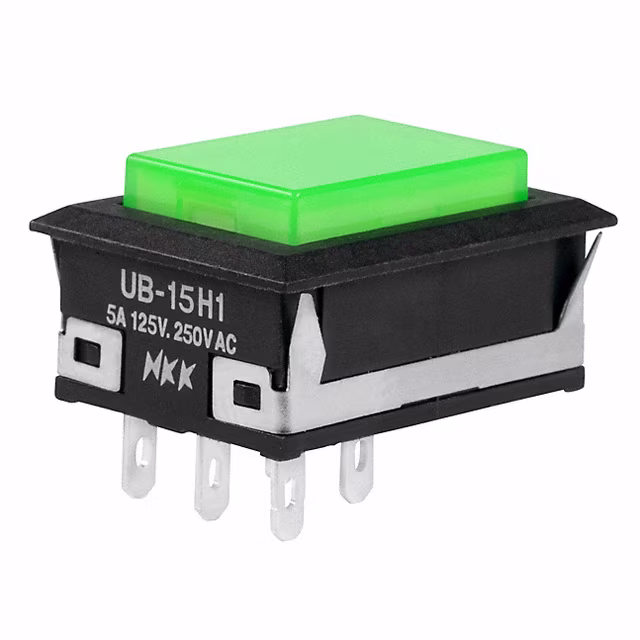

UB15NKW015F-FFSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,896 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
