Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB26RKG035CSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,536 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
UB215SKG035F-2BSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,077 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | LED, Green | 2.1 VDC | PC Pin | - | Sealed | - | -25°C ~ 50°C |
|
|
LB15SKW01-GSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,355 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
YB15NKG01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,339 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
UB215KKW015D-1JDSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,181 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
YB15RKG01-GBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,548 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Blue (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
LB26WGW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,254 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

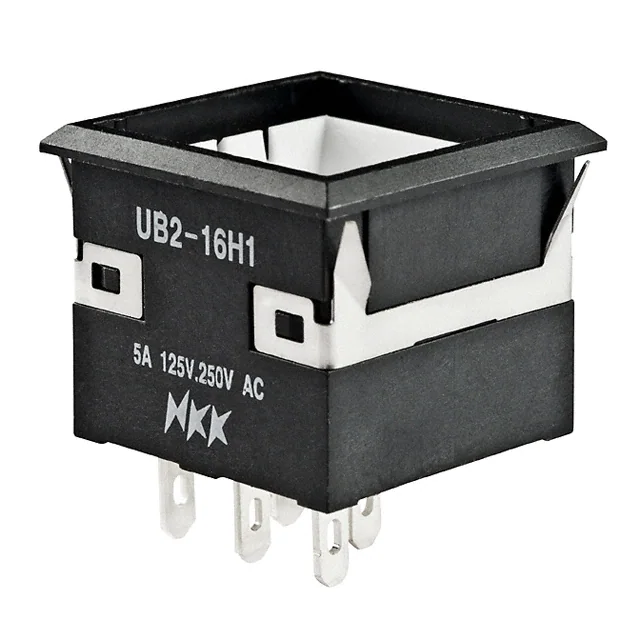

UB216KKW015FSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,309 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB215KKG015C-3JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,988 |
|
Datasheet |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB215KKG015D-1JDSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,841 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Process Sealed | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
