Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

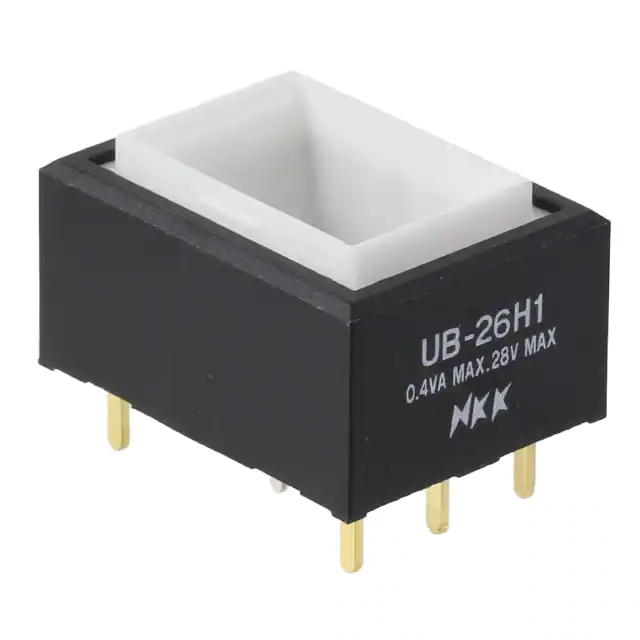

UB26RKG035D-JBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,433 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
UB25NKG015CSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,663 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Spot LED | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
JPM26BSWITCH PUSH DPST 10A 125V NKK Switches |
3,510 |
|
Datasheet |
JP | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 10A (AC) | 125 V | - | Rectangular, Button | No Marking | - | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
LB16SKG01-HSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,590 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Gray | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
EB2085G-B-J33AFESWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,511 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | LED, Green/Yellow | 2.1, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
EB2085G-B-J33AFFSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
1,730 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | LED, Green/Green | 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|

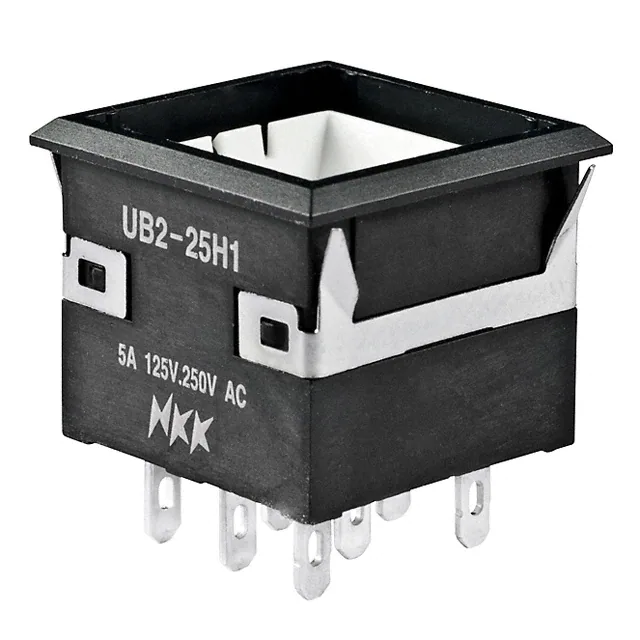

UB225KKW015CSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,764 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

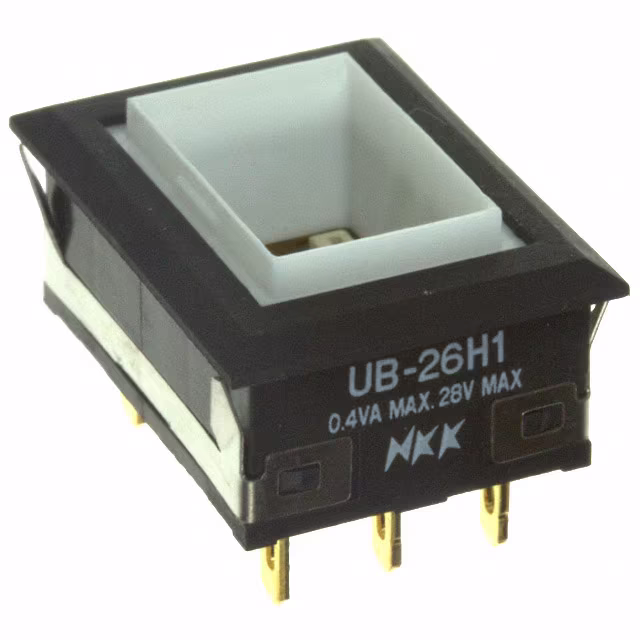

UB26NKG015DSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,245 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Stainless Steel | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
UB25NBKG015C-CCSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
2,793 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

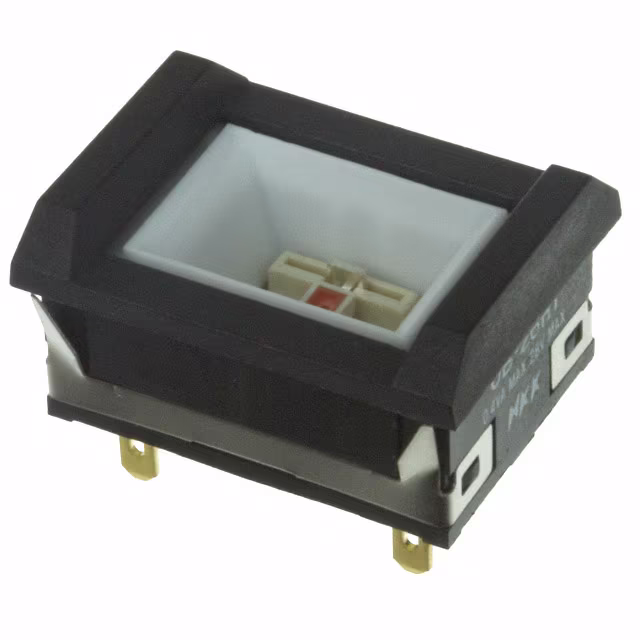

UB26NBKG015CSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
1,593 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
