Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB16SKG036FSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,459 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 3.2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB225SKG036B-2BSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
4,326 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | LED, White | 3.3 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
YB215CWCKW01/CUL-N-FBSTD SIZE PUSHBUTTON/ILLUMINATED/ NKK Switches |
1,809 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
UB16KKW016GSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,138 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Blue | 2.9 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
YB15WSKG01-5D12-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,829 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

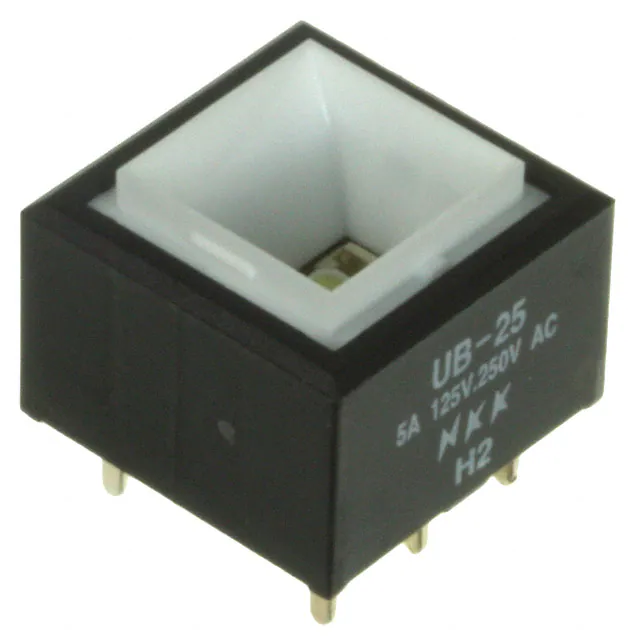

UB25SKW036BSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,626 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, White | 2.9 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|

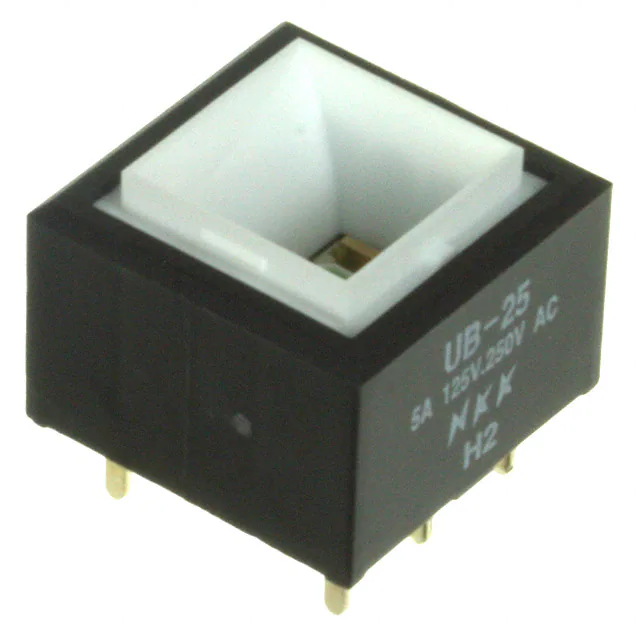

UB25SKW036FSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,777 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 3.2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
|
YB215CWCKG01-N-CBSTD SIZE PUSHBUTTON/ILLUMINATED/ NKK Switches |
1,352 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button, Flush | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

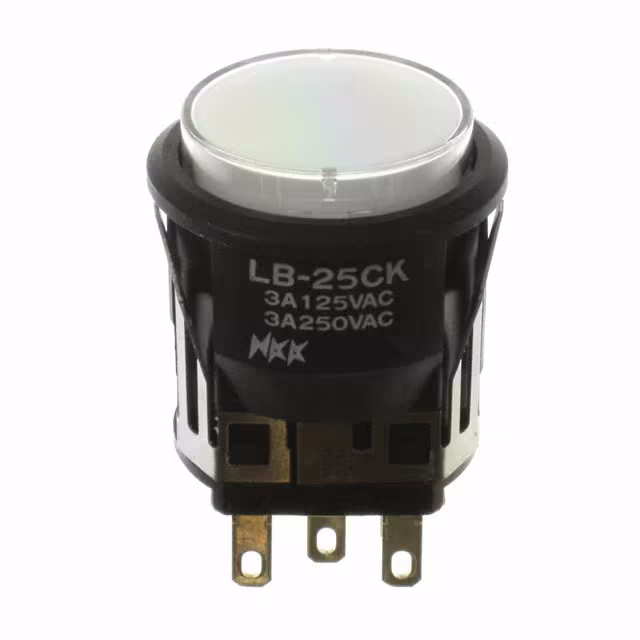

LB25CKW01-6G-JBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,258 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB16RKW01-6F-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,236 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
