Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

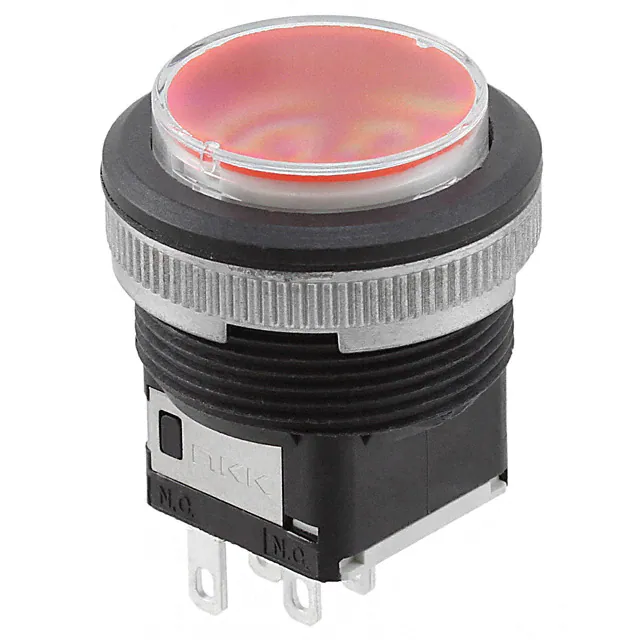

LB15WKW01-01-JCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,489 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | Neon, Red | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
UB225KKW016CFSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,768 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
HB15CKW01-6G-JBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
4,515 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
LB15WKG01-5D24-JDSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,404 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
LB26WGG01SWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,256 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
LB26RKW01-6B-JBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,657 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
UB225KKW016CF-3JBLOW PROFILE PUSHBUTTON/ILLUMINAT NKK Switches |
2,062 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
YB15RKW01-2CF12-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,964 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
LB16WKG01-5C-JCSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,760 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
UB226SKW036CFSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,052 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
