Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB215SKW03NSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,856 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
EB2085-CASWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,677 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
UB15SKG03NSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,812 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
UB15KKW015CSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,124 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

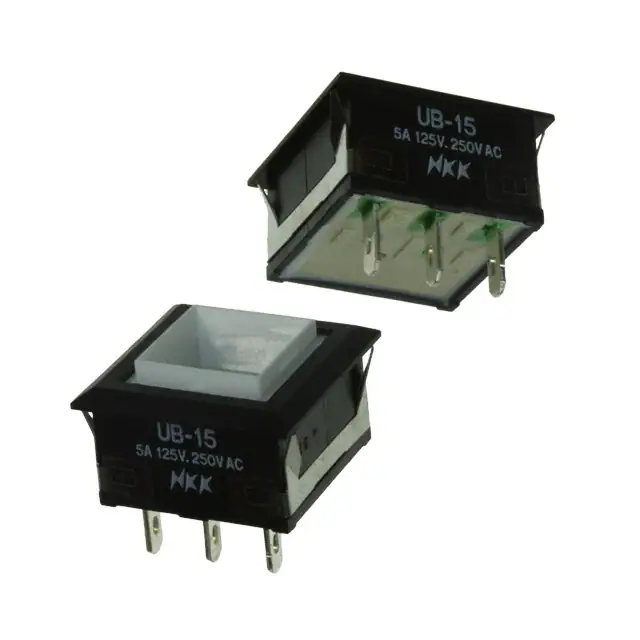

UB15KKW01NSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,363 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
UB15NKW01NSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,479 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
G3B25AH-XBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
1,117 |
|
Datasheet |
G3B | Tray | Active | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
G3B15AP-S-XBULTRA MINIATURE PUSHBUTTON/SMD NKK Switches |
1,810 |
|
Datasheet |
G3B | Tube | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
GB25AH-XBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,470 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN12SS1W01BUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
4,899 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
