Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

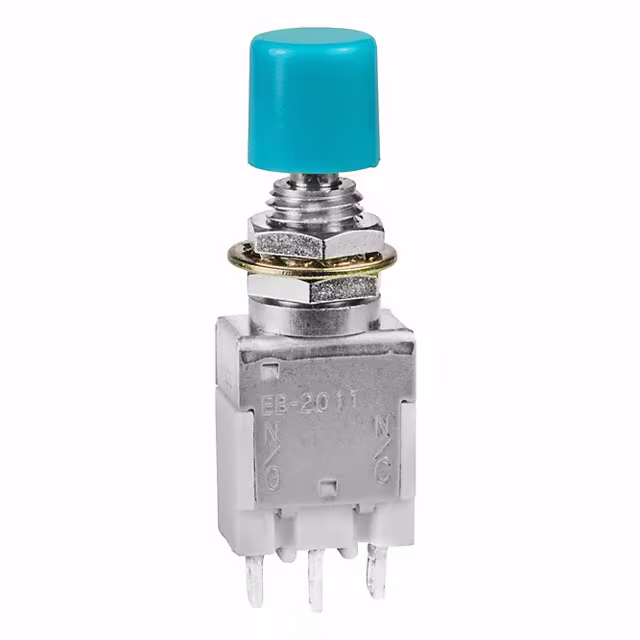

EB2011-BGSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,568 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

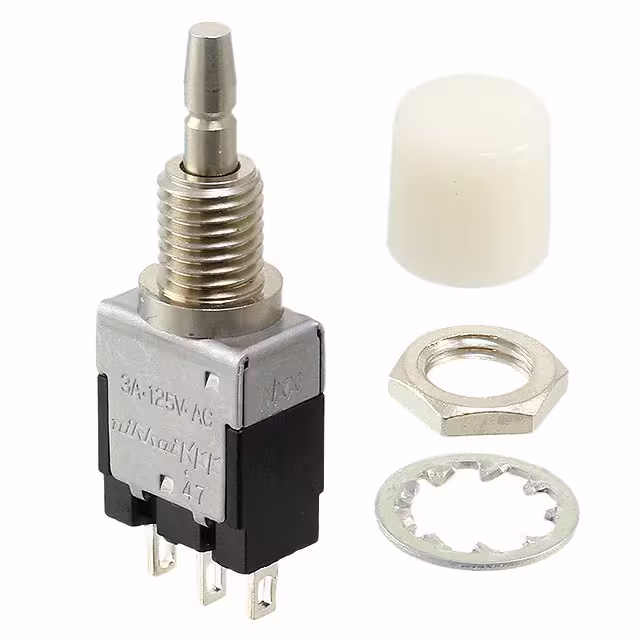

EB2011-BBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,380 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
MBNR15E1W01SNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
1,912 |
|
- |
MB2400 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
UB26RKW03NSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,384 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
HB215SKG03CFSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
2,655 |
|
Datasheet |
HB2 | Box | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.0, 2.25 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
G3B15AB-XBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,760 |
|
Datasheet |
G3B | Tray | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
M2B25AA5W03SWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
3,983 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
UB15KKG01NSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,054 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
MBNR15A2W40SNAP-ACTION BRACKET PC MOUNT PUS NKK Switches |
3,107 |
|
- |
MB2400 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
UB15NKW01N-BSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,372 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
