Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB15SKG035DSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,874 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
G3B25AP-XBSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
147 |
|
Datasheet |
G3B | Bulk | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
EB2011P-A-J41ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,065 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
UB25SKW035D-JDSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
150 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
G3B25AHSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
232 |
|
Datasheet |
G3B | Tray | Active | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
LB15RKG01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,439 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|

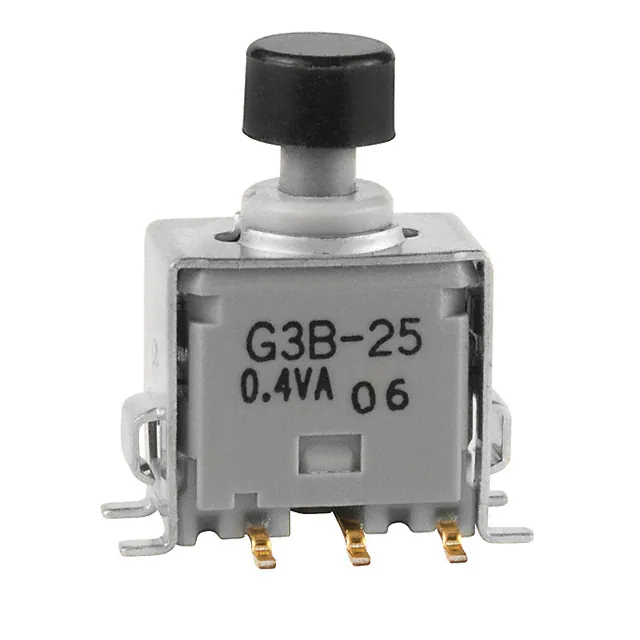

G3B25AB-S-YASWITCH PUSH DPDT 0.4VA 28V NKK Switches |
860 |
|
Datasheet |
G3B | Tube | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
YB15CKW01-BBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,866 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
UB15SKG035D-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
474 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKG035D-JDSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,009 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
