Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

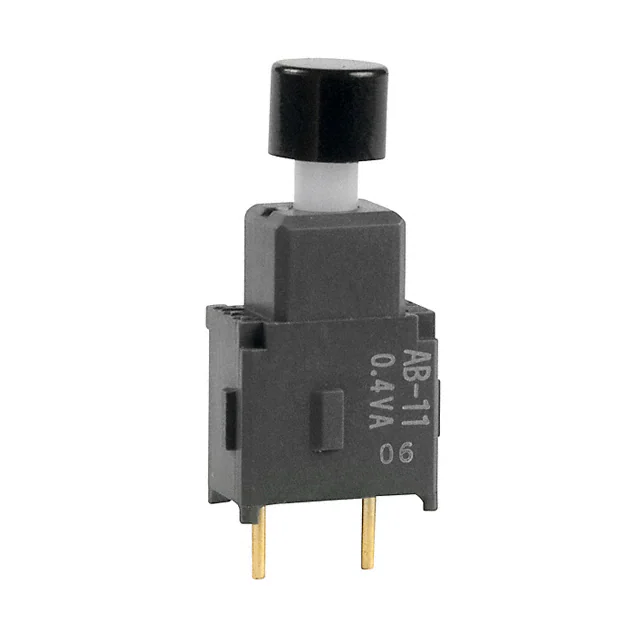

AB11AP-FASWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
899 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
BB16AH-FCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,570 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
AB11AH-FASWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
701 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

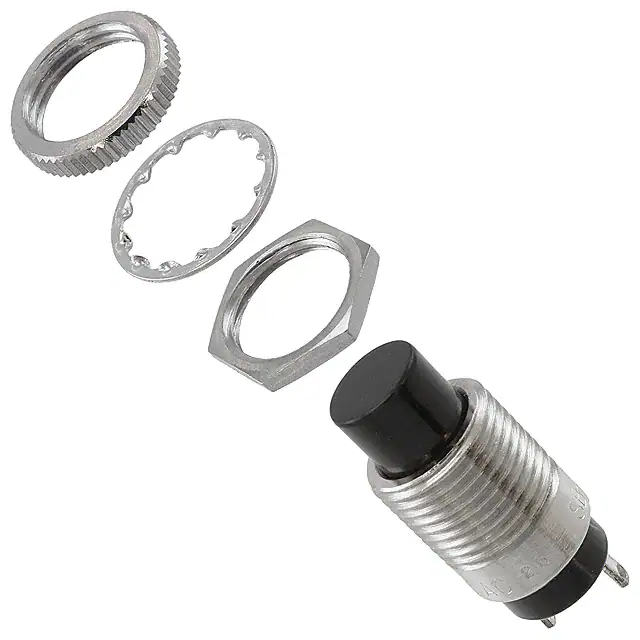

SB4011NOMSWITCH PUSH SPST-NO 3A 125V NKK Switches |
840 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

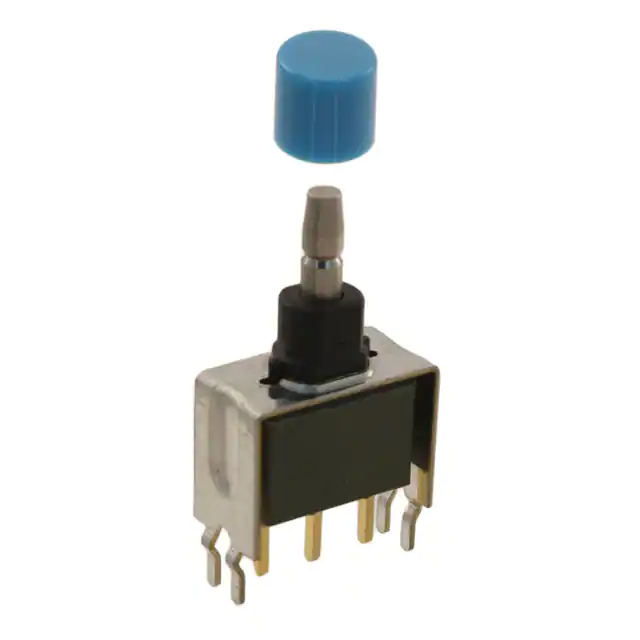

M2B15BA5G13-CGSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
5,387 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

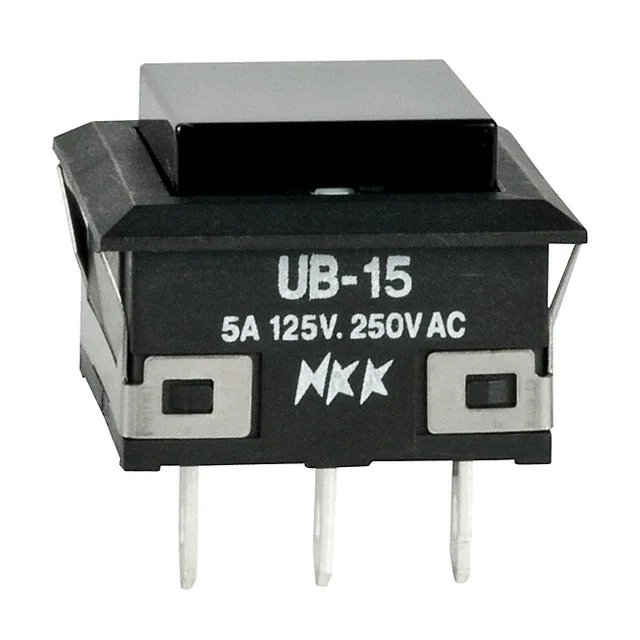

UB15KKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
406 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
G3B25AH-R-XCSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,453 |
|
Datasheet |
G3B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

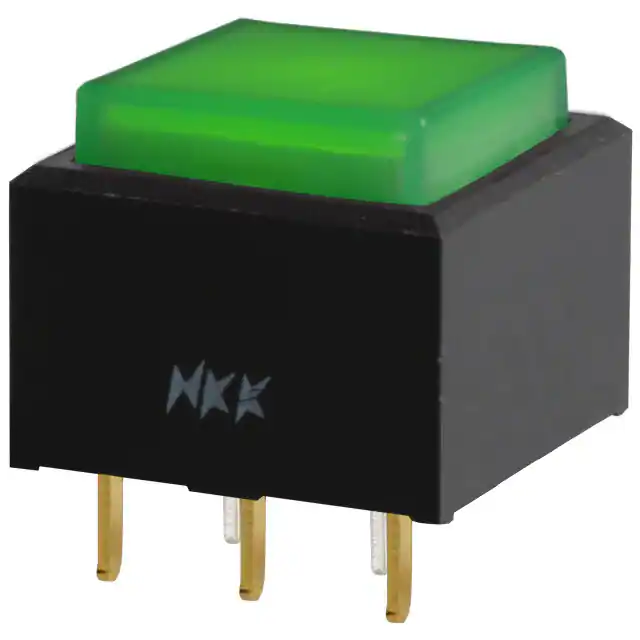

UB15SKG035F-FFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
192 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

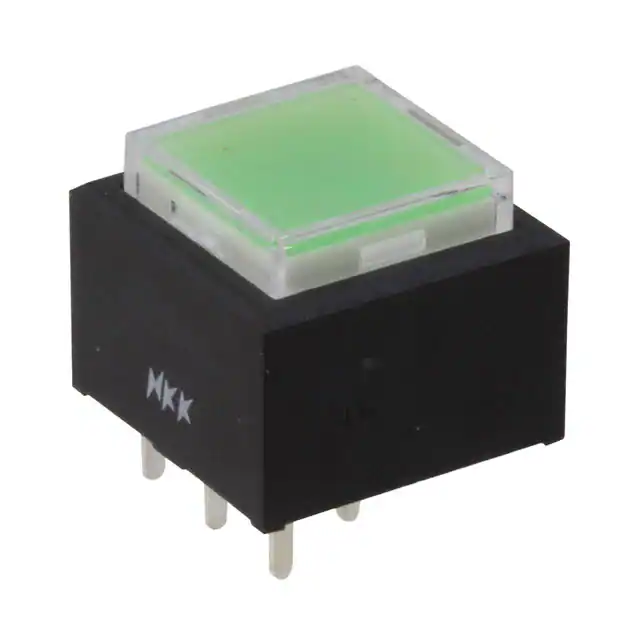

UB15SKW035F-JFSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
446 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

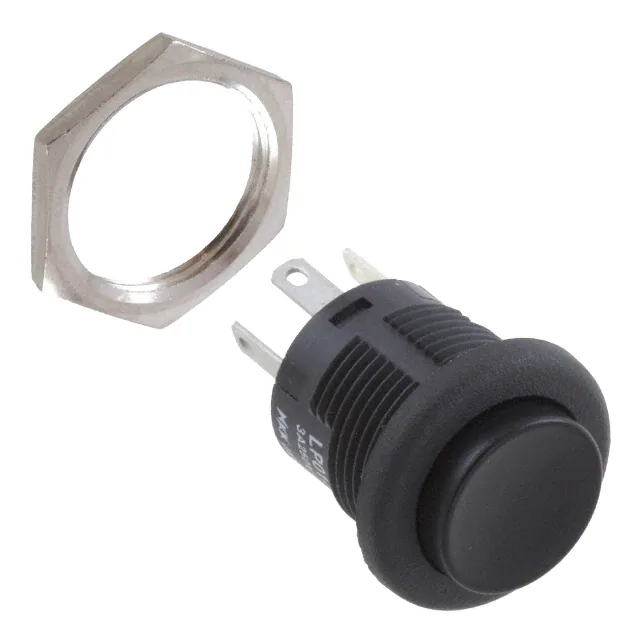

LP0115CCKW01ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,018 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
