Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GB25AP-XCSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
16,130 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
BB15AP-FASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
805 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
BB15AHSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
252 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
SB4011NOHCSWITCH PUSH SPST-NO 3A 125V NKK Switches |
5,443 |
|
Datasheet |
SB40 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
HB15CKW01-5C-CBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
1,690 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Red | LED, Red | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
GB15APSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,218 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
BB15AH-FCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
11,183 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

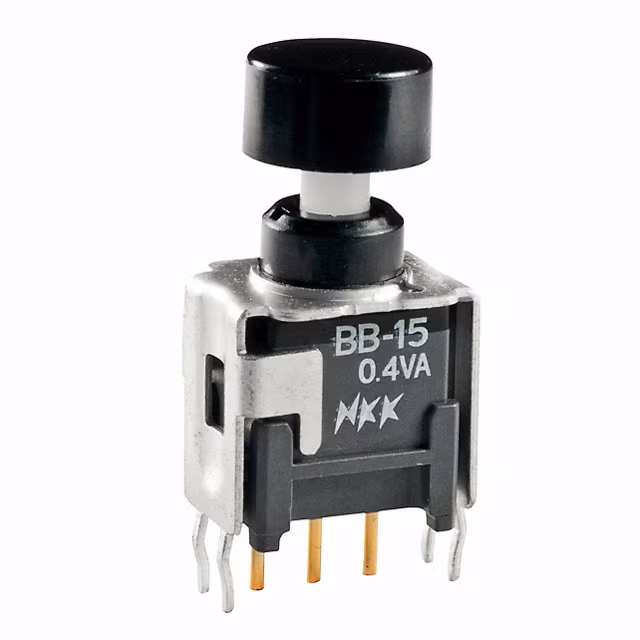

BB15AB-HASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
500 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

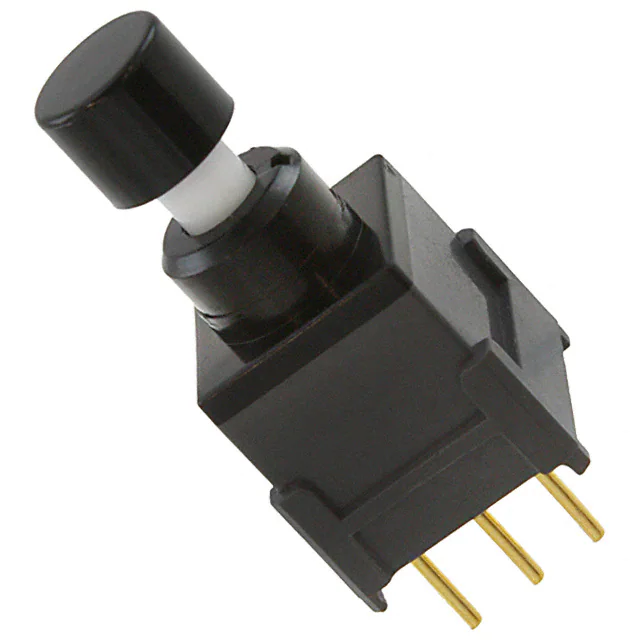

BB16AP-FASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,957 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
BB16AH-HASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
335 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
