Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB15WSKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,461 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
YB26MKW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,876 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

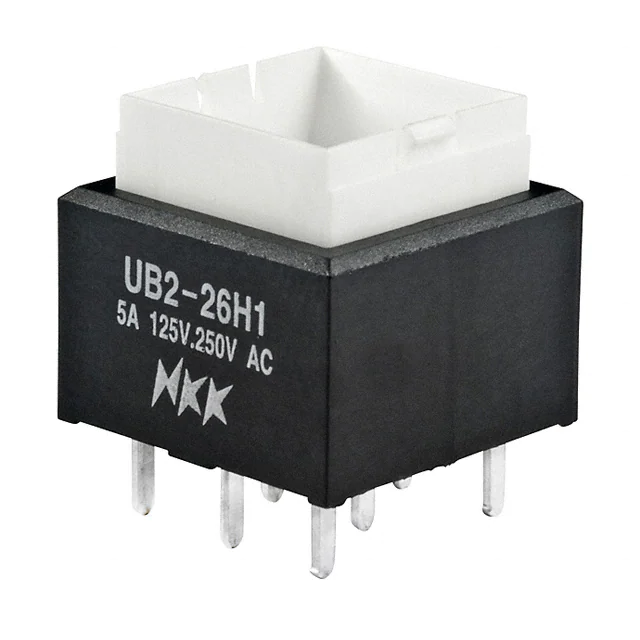

UB226SKW035CSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,837 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|

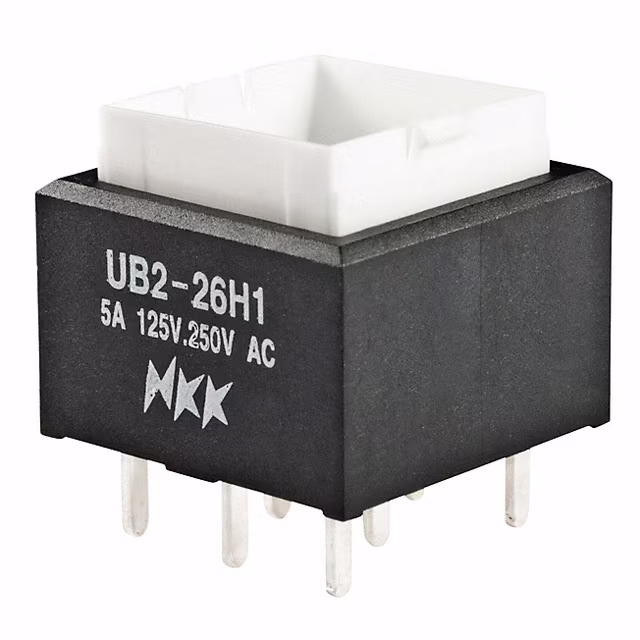

UB226SKW035FSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,434 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
UB225KKW015D-1JDSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,318 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
YB25SKG01-CBSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
4,144 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
LB15RKG01-5D-JDSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,539 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
UB226KKW015CSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,005 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
LB16SKW01-1F-FSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,261 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB26SKW01-ASWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,365 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
