Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB25CKW01-1C-ASWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,298 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB25WCKW01-CBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,465 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
LB15WKG01-EJSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,434 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
UB216SKW036CFSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,868 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
LB25SKW01-5D-JDSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,722 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB26WKG01-EJSTD SIZE PUSHBUTTON/NON ILLUMINA NKK Switches |
3,675 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
UB215KKW016CFSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,375 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | PVC Cap and Frame | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

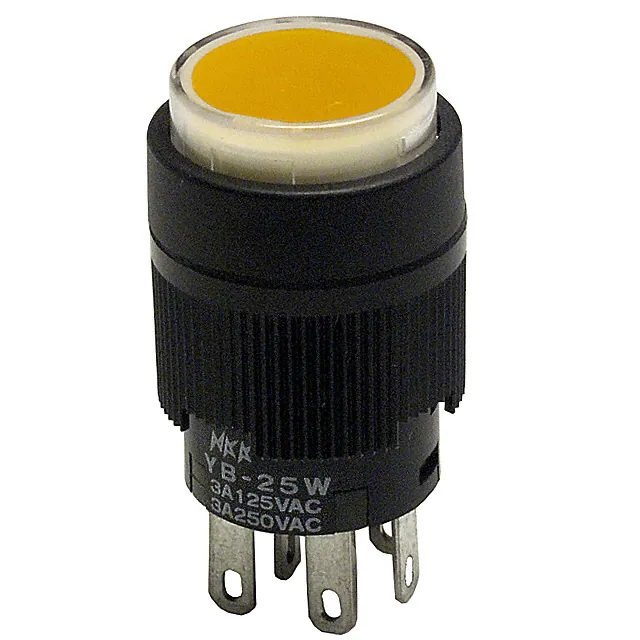

YB25WCKW01-5D-JDSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,153 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
UB16SKW036GSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,571 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Blue | 2.9 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
YB26WRKW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,934 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
