Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB215KKG016DG-4JDG14SWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,507 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Amber/Blue | 2.8, 2 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB215KKG016DG-5JDG11SWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,937 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | ON/OFF | Clear | LED, Amber/Blue | 2.8, 2 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
YB216CWSKW01-6G-JBSPDT ON-ON PANEL SEAL SQUARE BLA NKK Switches |
3,545 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
UB216KKW016DG-4JDG13SWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,202 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | START/STOP (Alternating) | Clear | LED, Amber/Blue | 2.8, 2 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB216KKW016DG-4JDG14SWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,374 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Amber/Blue | 2.8, 2 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
.jpg)
|
WB12LSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
2,256 |
|
Datasheet |
WB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.50mm Dia | -30°C ~ 70°C |
|
YB226CWCKW01-5D-JSSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
100 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

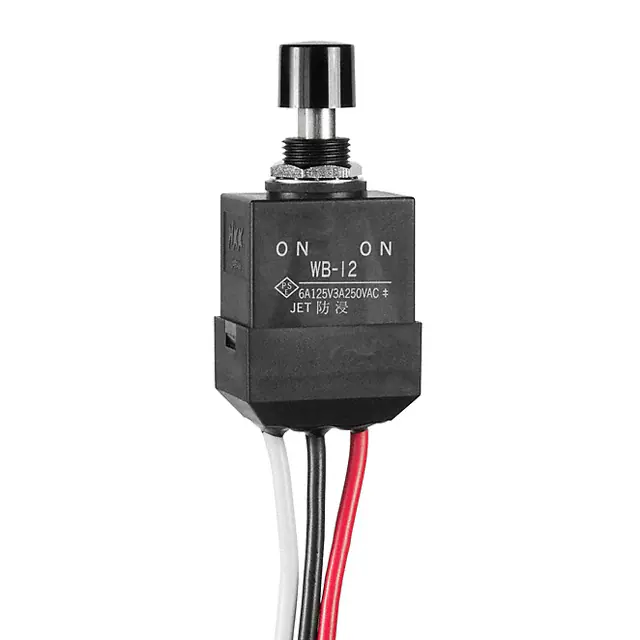

WB12L-DASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
4,469 |
|
Datasheet |
WB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.50mm Dia | -30°C ~ 70°C |
|
|
UB226SKW036CF-5JCF14SWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,333 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
UB226SKW036CF-5JCF13SWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,343 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | START/STOP (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
