Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP0115AG03LDSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,174 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button (Not Included) | No Marking | - | LED, Amber | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
NP0115AG03LFSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,114 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button (Not Included) | No Marking | - | LED, Green | 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

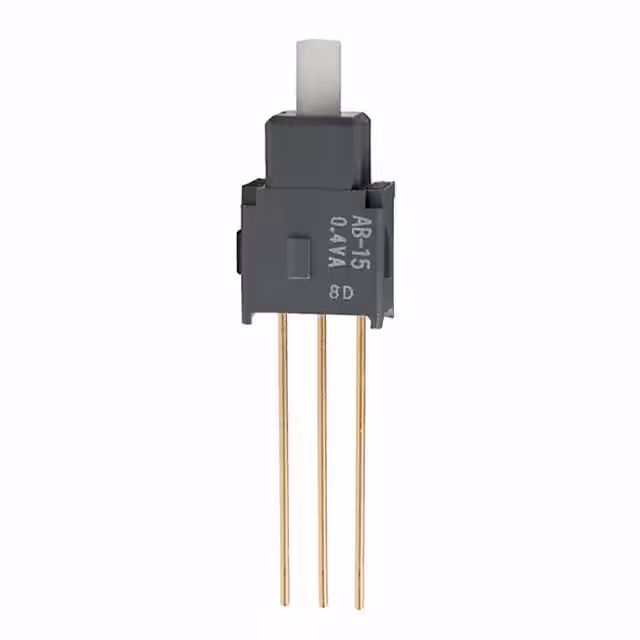

AB15BWSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,398 |
|
Datasheet |
AB | Tube | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB15BPSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,201 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
MB2411JW01-A-2ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,288 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|

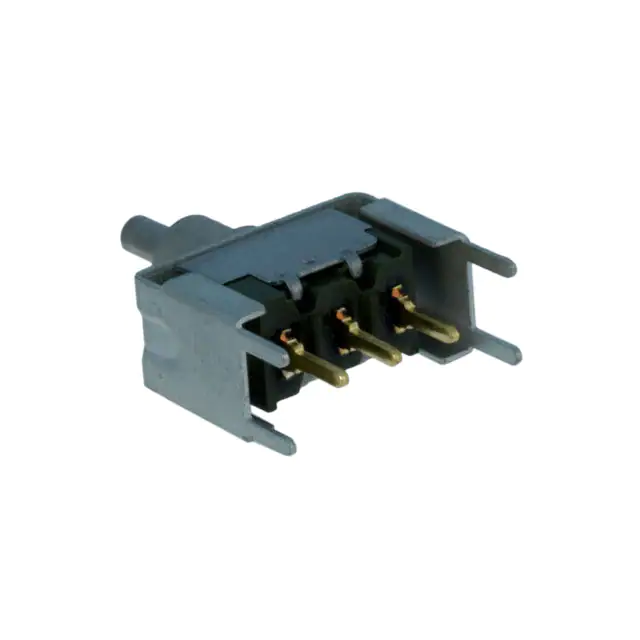

MB2411A2G23SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,640 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

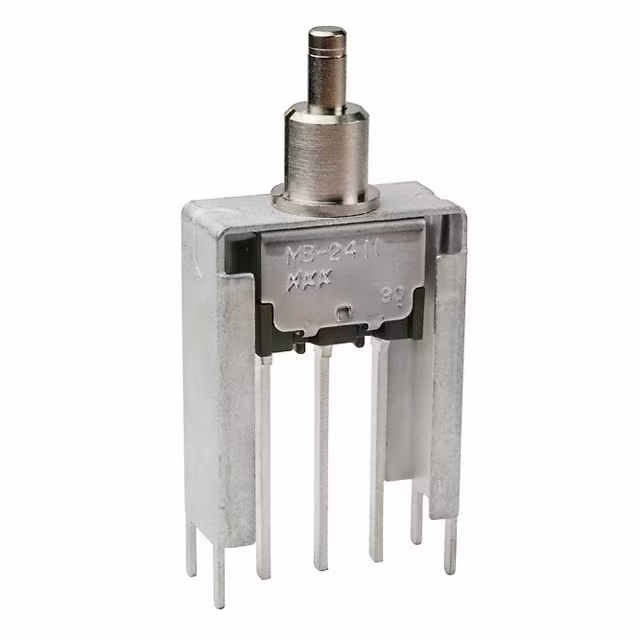

MB2411A2W26SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
100 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

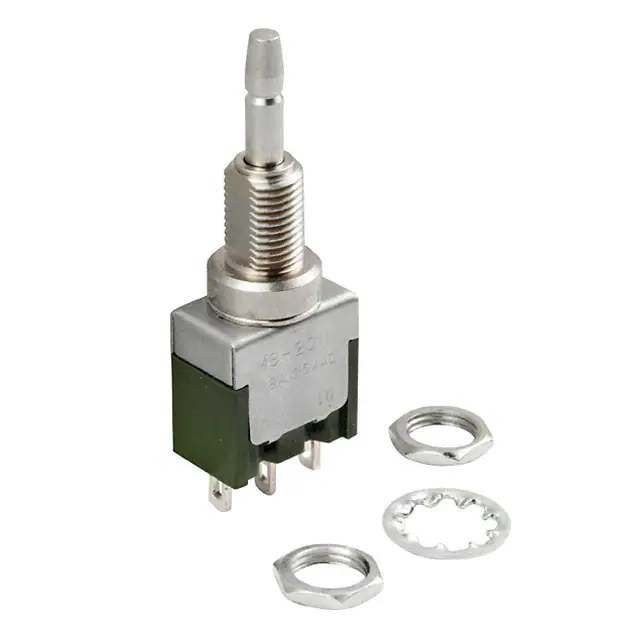

MB2011LD1W01SWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,814 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
AB15BB1SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,466 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
SB4011NOHC-2FSWITCH PUSH SPST-NO 3A 125V NKK Switches |
1,890 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
