Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB15BH-FBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,725 |
|
Datasheet |
AB | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
AB15BH-FCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,532 |
|
Datasheet |
AB | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

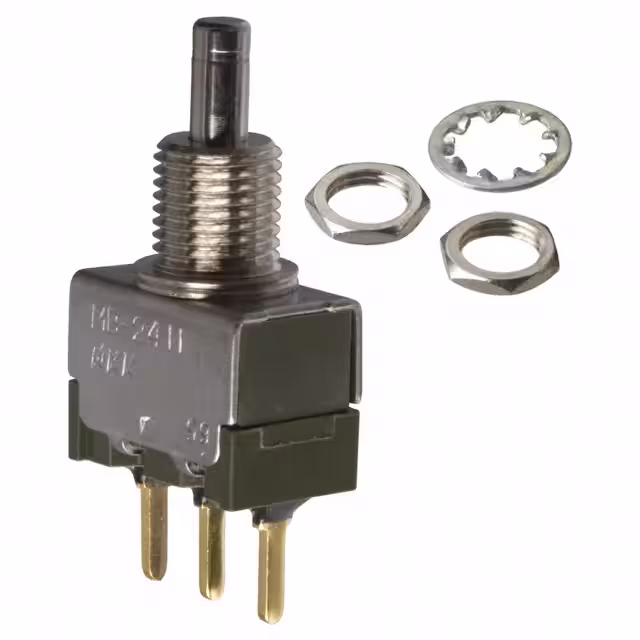

MB2411E1G03SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,484 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

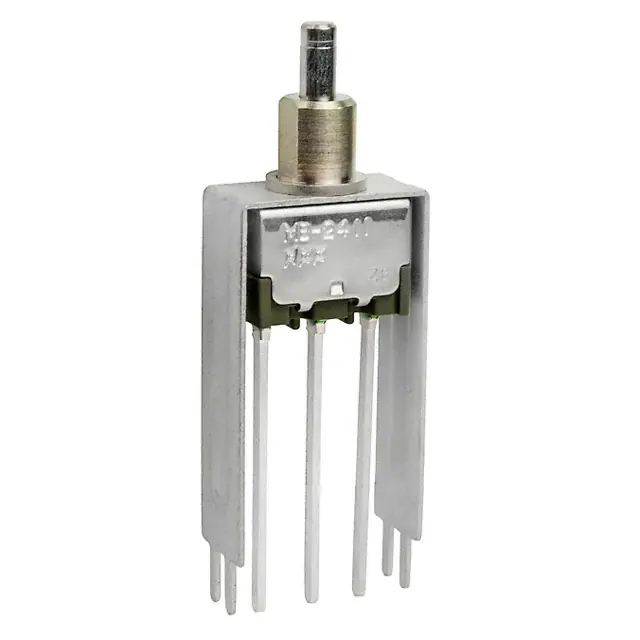

MB2411E2W17SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,059 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
AB15AV-FCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
100 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
MB2411A1W03-FCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,223 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
AB15BH-HASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,826 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
AB15BV1-FASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,677 |
|
Datasheet |
AB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
AB15BV-FASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,907 |
|
Datasheet |
AB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
MB2411A1W03-HCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,173 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
