Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB26KKW01NSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,842 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
M2B25AA5G30-HCSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
1,330 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
MB2011SA2G31-CCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,126 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2011SA2G31-CASWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,638 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

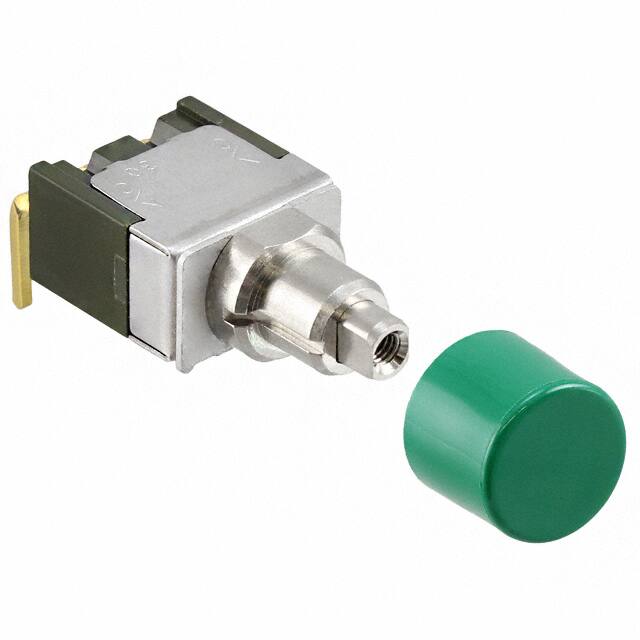

MB2011SA2G31-CFSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,813 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2011SS1G03-BASWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,635 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2011SS1G03-BBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,761 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB26SKG03N-ASWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,152 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
|
UB26SKG03N-FLOW PROFILE PUSHBUTTON/NON ILLUM NKK Switches |
1,322 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Stainless Steel | - | -25°C ~ 70°C |
|
|
MB2011SS1G03-CCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,899 |
|
Datasheet |
MB2000 | Box | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
