Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB15KKG015F-FJSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,952 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

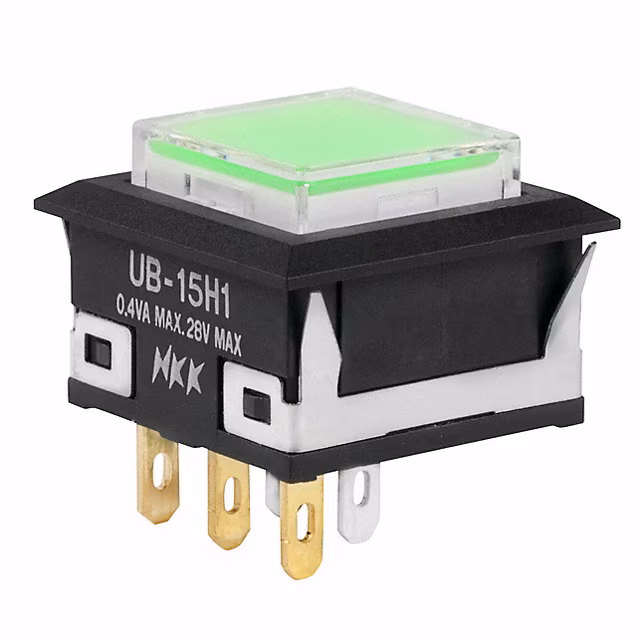

UB15KKG015F-JFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,001 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MB2411E1G03-HCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,985 |
|
Datasheet |
MB2400 | Box | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB15KKG015D-DDSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,152 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
UB15KKG015D-JDSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,757 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB15KKG015D-DJSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,330 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB15KKG015D-JJLOW PROFILE PUSHBUTTON NKK Switches |
4,381 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | - | Clear | LED, Amber | 2 VDC | Solder Lug | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
YB15RKW03SHORT BODY PUSHBUTTON/ILLUMINATE NKK Switches |
1,914 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
UB25SKG03N-BSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,401 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | - | - | PC Pin | - | Spot LED | - | -20°C ~ 70°C |
|
|
LB15CGW01SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,718 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
