Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB16RKG035C-JCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,342 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB16RKG035F-FBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,347 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Green (White Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB16RKG035F-FFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,710 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

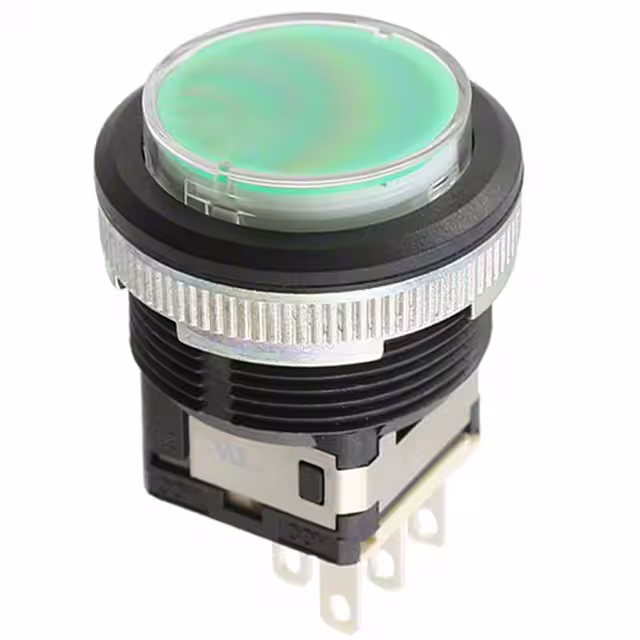

LB15WKW01-12-JFSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,813 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
MB2521S4W03SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,857 |
|
Datasheet |
MB2500 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB226KKW01N-4JCSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,428 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | - | - | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB226KKW01N-4JBSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,604 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
MB2011SD3A01-BABUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,849 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

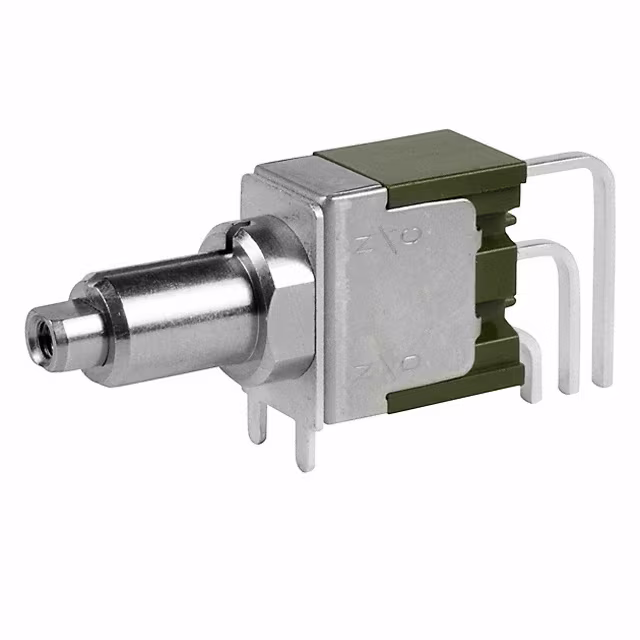

MB2011SS2W45SWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
3,679 |
|
Datasheet |
MB2000 | Box | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2521JW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,736 |
|
Datasheet |
MB2500 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 13.10mm | -30°C ~ 85°C |
