Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB16NKG015C-JBLOW PROFILE PUSHBUTTON NKK Switches |
4,754 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | - | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
KB25RKG01SWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
1,005 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
UB15KKG015F-ABSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,765 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black (White Window) | LED, Green | 2.1 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

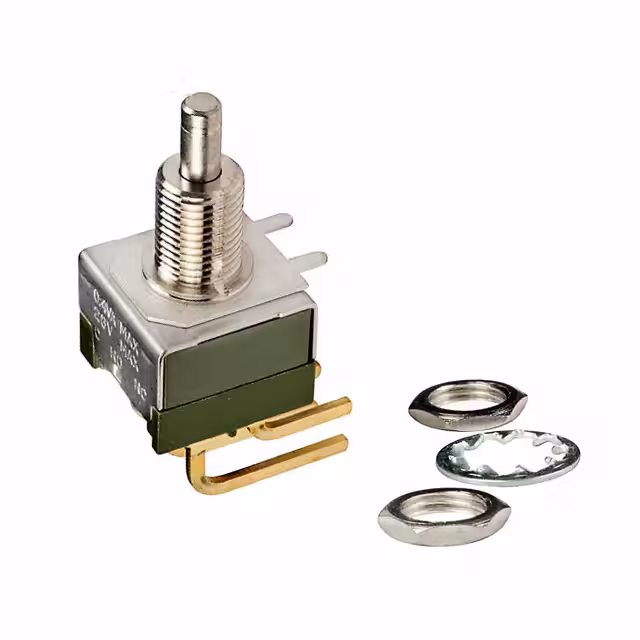

MB2461S1G30SWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,636 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2461S1W01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,808 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB226KKG01NSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,432 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB226SKG03NSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
3,498 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB16KKW015D-ABSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,202 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Amber | 2 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB26SKG035DSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
4,193 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
|
EB2011-A-J23ACFLIGHT TOUCH MINIATURE PUSHBUTTON NKK Switches |
1,361 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | - | Black | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | - | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
