Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCB15P10A-4CBSWITCH PUSHBUTTON SPDT 10A 125V NKK Switches |
4,505 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
M2B15BA5A40-CASWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,899 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

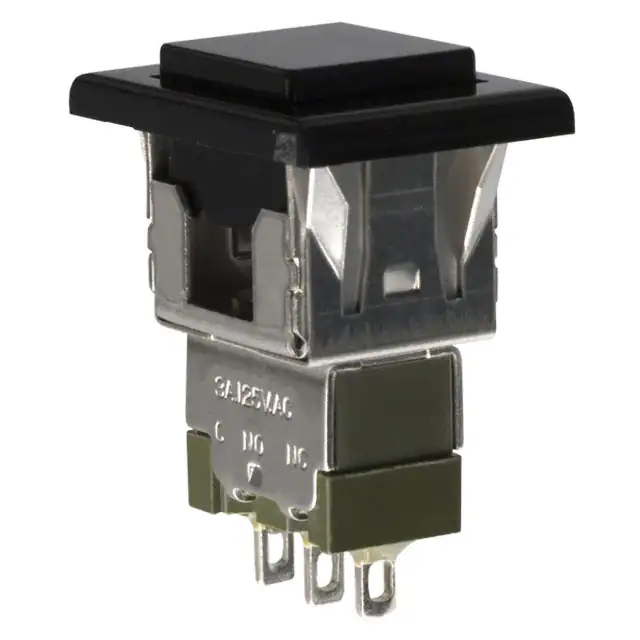

MB2411JW01-A-1ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,960 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
MB2011SS1W03-CCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,912 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2011SS1G03SWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,284 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
LB25CKW01/UCSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,310 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
MB2011SS2W13-CCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
3,459 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
G3B25AH-RSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,661 |
|
Datasheet |
G3B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5W13SWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,673 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
SB4011NCMG-2GSWITCH PUSH SPST-NC 0.4VA 28V NKK Switches |
3,141 |
|
Datasheet |
SB40 | Bulk | Discontinued at Digi-Key | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
