Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2065SS1W03SWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,531 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
NP0115HG03LF-JFSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
3,120 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
SCB15P10B-5CASWITCH PUSHBUTTON SPDT 10A 125V NKK Switches |
1,668 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
MB2011SS2W13-BCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
2,278 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
AB15AH-HCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,218 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
AB15AV-FBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,258 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
SB4011NCM/CUL3 AMP MOMENTARY PUSHBUTTON NKK Switches |
4,637 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
UB16RKW03N-JBSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,412 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

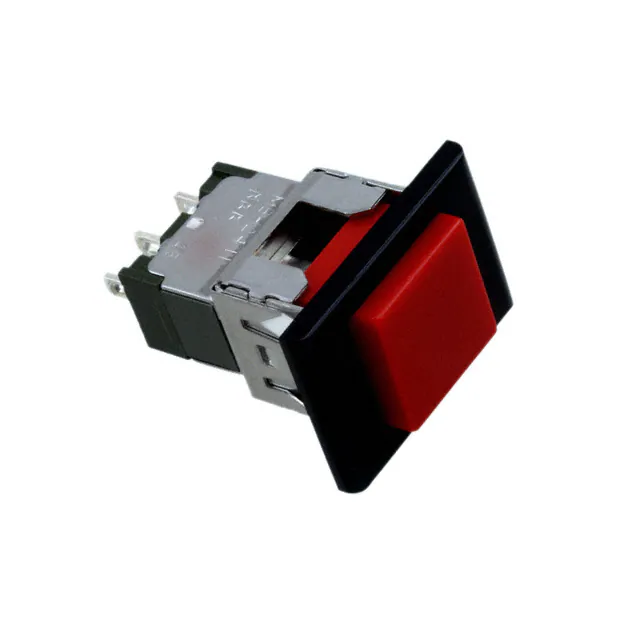

MB2411JW01-C-1ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,744 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
MB2011SD3G01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,995 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
