Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB15SKG01-12-JFSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,376 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
YB15MKG03SWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,421 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
UB215SKW03N-4JALOW PROFILE PUSHBUTTON NKK Switches |
1,448 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | - | Clear (Black Filter/Diffuser) | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
MBNF15S4W03SNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
1,539 |
|
- |
MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2011SS2A30MINIATURE PUSHBUTTON/MULTI-FUNCT NKK Switches |
2,352 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

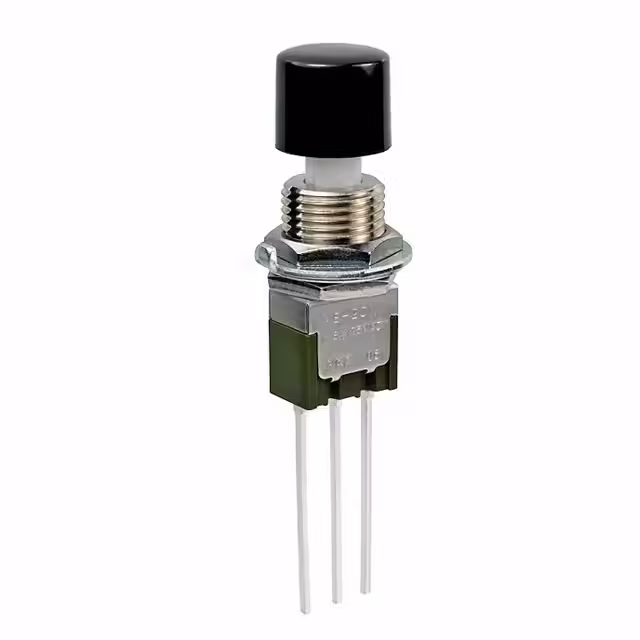

MB2011SB1W08-DASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
4,335 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Wire Wrap | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
LB15CGG01-28-GJSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,314 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | Incandescent, Blue | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB15CKG01-28-GJSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,472 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | Incandescent, Blue | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

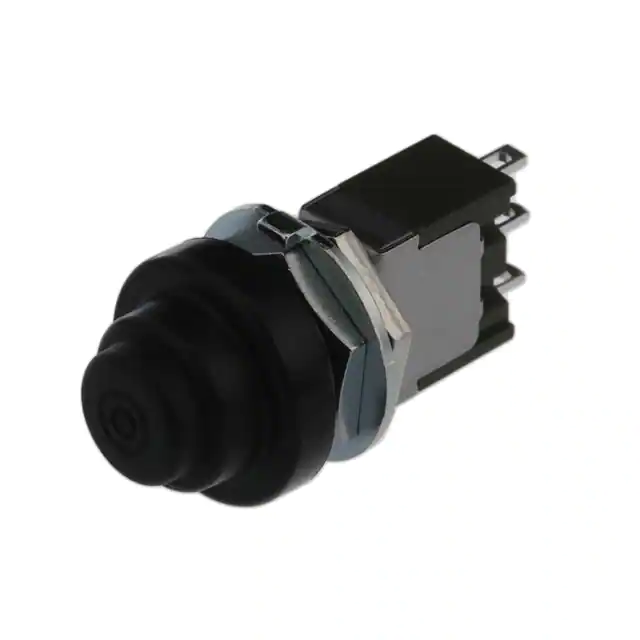

MB2011VA002SWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
3,420 |
|
Datasheet |
MB2000 | Tray | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

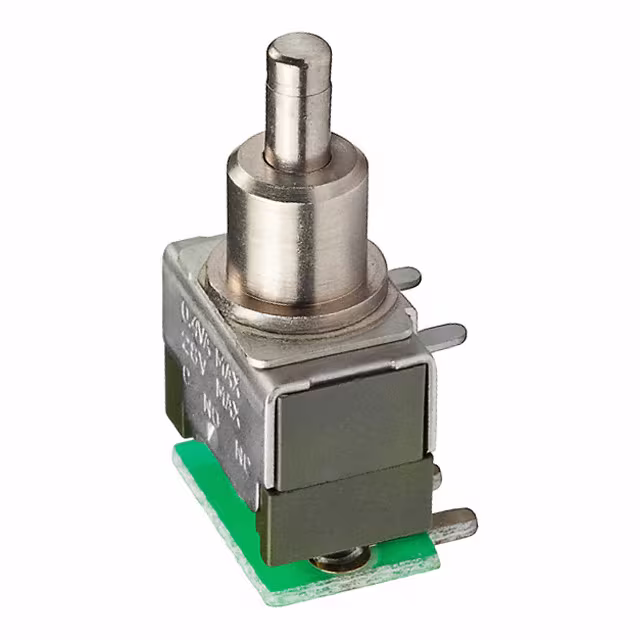

MB2411A2G33SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,114 |
|
- |
MB2400 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
