Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB25KKW01SWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
1,859 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB15MKG01-CCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,709 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
MB2061SB1W01SWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
4,280 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
EB2011-CGLIGHT TOUCH MINIATURE PUSHBUTTON NKK Switches |
1,597 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Blue | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2011-CELIGHT TOUCH MINIATURE PUSHBUTTON NKK Switches |
1,507 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Yellow | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
MB2011SB1G01-ECSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,512 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
UB15SKG03N-BSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,017 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

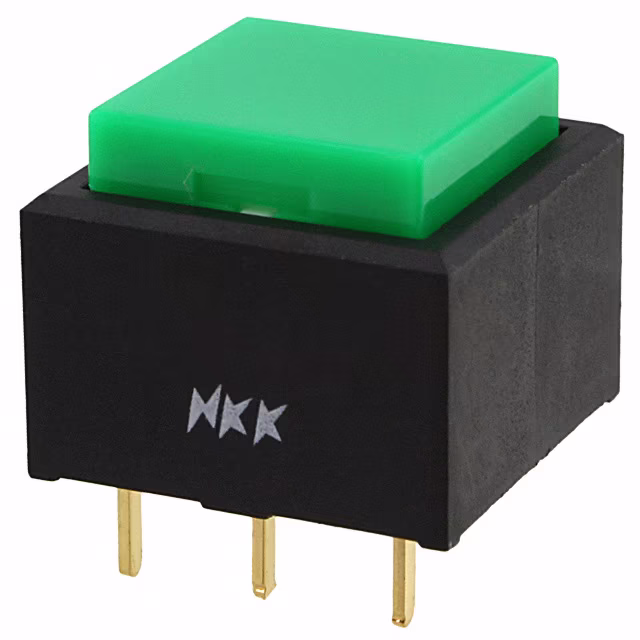

UB15SKG03N-FSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,942 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
M2B25BA5W03SWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
4,384 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
MBN15LS1W03BUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,613 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
