Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB15CKW01/CSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,257 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
MBNF15S2W13-BASNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
3,095 |
|
- |
MB2500 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBNF15S2W13-BCSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
3,887 |
|
- |
MB2500 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBNF15S2W13-BBSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
1,147 |
|
- |
MB2500 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

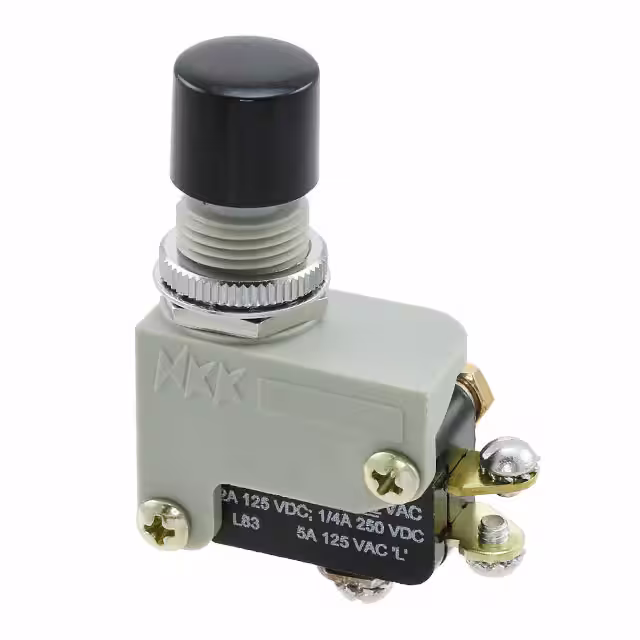

SCB15P10C-3ASWITCH PUSHBUTTON SPDT 10A 125V NKK Switches |
3,411 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Screw Terminal | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
EB2011P-C-J41ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,856 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
MBN15SS2W13BRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
4,996 |
|
- |
MB2000 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN15SB1W01-N7CLARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
3,414 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBNF15S4G01-BASNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
1,932 |
|
- |
MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNF15S4G01-BCSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
1,605 |
|
- |
MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
