Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN15SA2G31-CCBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
1,944 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN22SS4W01BUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
2,687 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBNF25S4W01SNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
2,604 |
|
- |
MB2500 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 2A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SA2G31-CBBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
3,961 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN15SA2G31-CFBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
2,992 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Green | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN15SA2G31-CABRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
2,077 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
LB25SKW01/UCSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,771 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

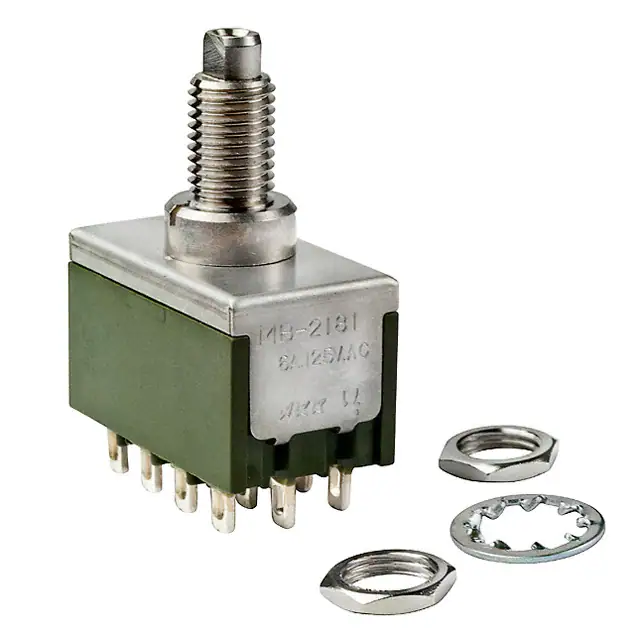

MB2181SS4W01SWITCH PUSHBUTTON 4PDT 6A 125V NKK Switches |
2,917 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SS1G30BRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
2,450 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB26KKW015D/CULLOW PROFILE PUSHBUTTON/ILLUMINAT NKK Switches |
3,027 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
