Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB26KKW015F/CULLOW PROFILE PUSHBUTTON/ILLUMINAT NKK Switches |
1,667 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
HB15SKW01-GSWITCH PUSH SPDT 0.1A 30V NKK Switches |
3,987 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Blue | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
HB16SKW01-CSWITCH PUSH SPDT 0.1A 30V NKK Switches |
4,930 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
MBN12SS4W01-BABUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,689 |
|
- |
MB2000 | Bulk | Active | Panel Mount | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
KP0215ANBKG036CF-3FJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
1,349 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
MBNF15S2G45SNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
2,082 |
|
- |
MB2500 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

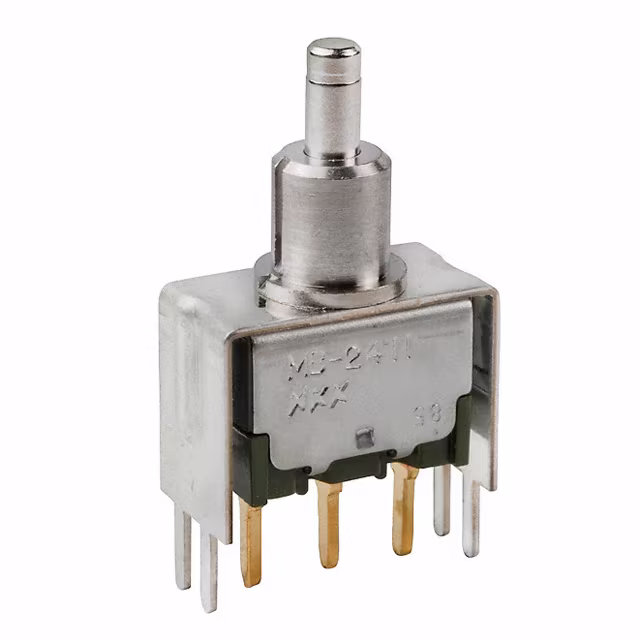

MB2411A2A13SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,841 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
LB15RKW01/CULSTANDARD SIZE SNAP-IN PUSHBUTTON NKK Switches |
4,414 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
UB25RKG03N-CSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,854 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | - | - | PC Pin | - | Spot LED | - | -20°C ~ 70°C |
|
|
UB25RKG03N-BLOW PROFILE PUSHBUTTON/NON ILLUM NKK Switches |
1,418 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | White | - | - | PC Pin | - | Spot LED | - | -25°C ~ 70°C |
