Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN15SA2W31-CABRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
4,546 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN15SA2W31-CCBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
2,534 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN22SS1W01-BCBUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
2,031 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN22SS1W01-BABUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
1,556 |
|
- |
M | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | - |
|

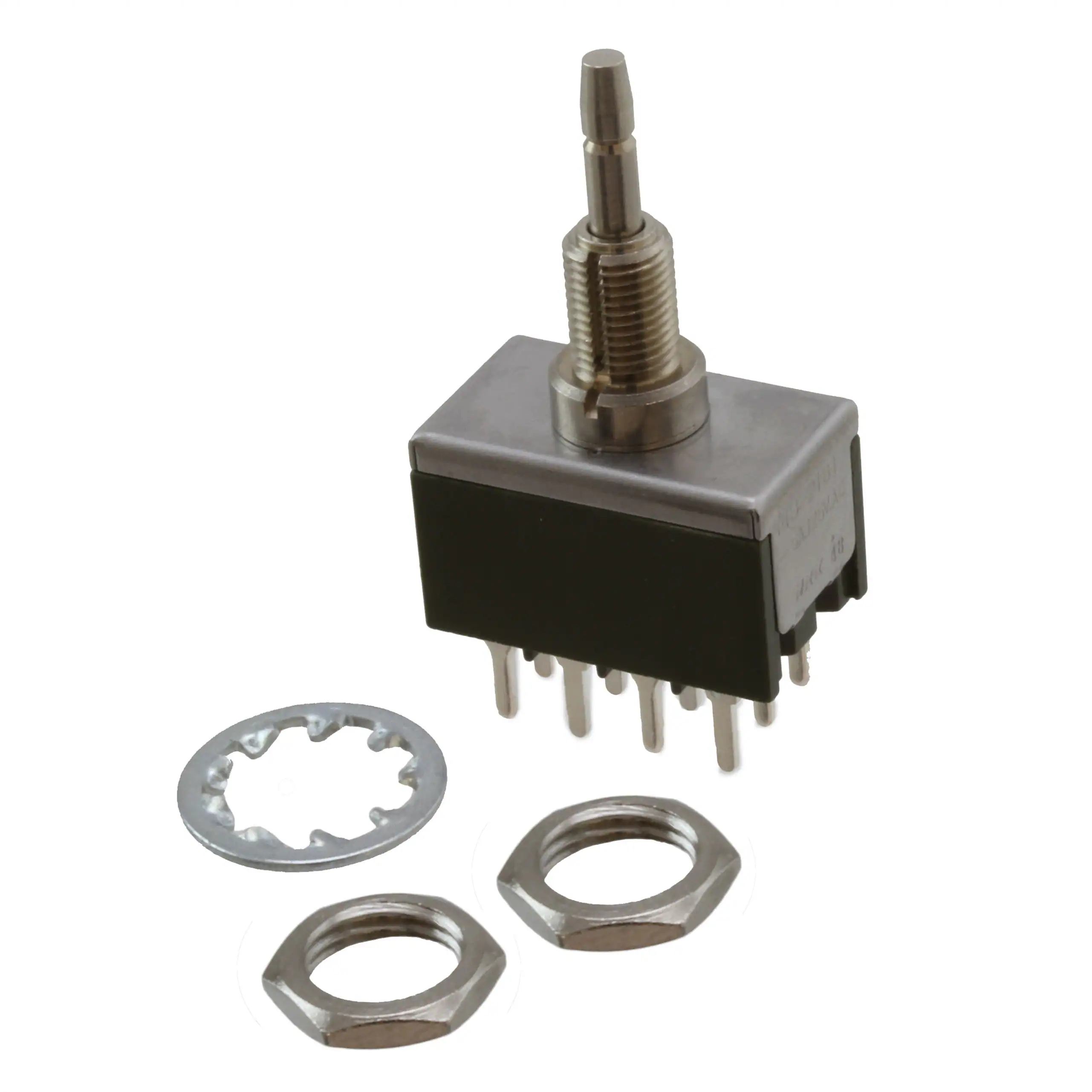

MB2181LS1W03SWITCH PUSHBUTTON 4PDT 6A 125V NKK Switches |
3,874 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
LB16WKW01-01-JESWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,827 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | Neon, Yellow | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
MBN22SS1W01-CCBUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,862 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNF25S4W01-BCSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
4,177 |
|
- |
MB2500 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SS1G30-BCBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
1,313 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Red | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SS2W30BRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
1,069 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
