Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2061SS1W03/CUL-N987BUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,778 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB15KKW015D-ABSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,097 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Amber | 2 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
EB2011G-B-J23ACFLIGHT TOUCH MINIATURE PUSHBUTTON NKK Switches |
1,157 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | - | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
LB15CKW01/USWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,896 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

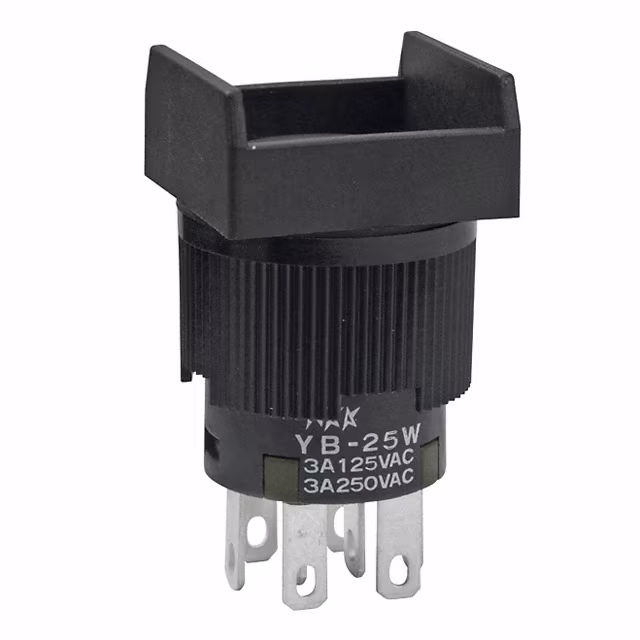

YB25WSKW01/UCSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,090 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
LB15SGW01/USWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,761 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
LB15SKW01/USWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,533 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
LB15SKG01-CF-ASWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,479 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | LED, Green/Red | 2.0, 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MBN12SB1W03LARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
3,137 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN12SB1W03-DALARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
2,941 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
