Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

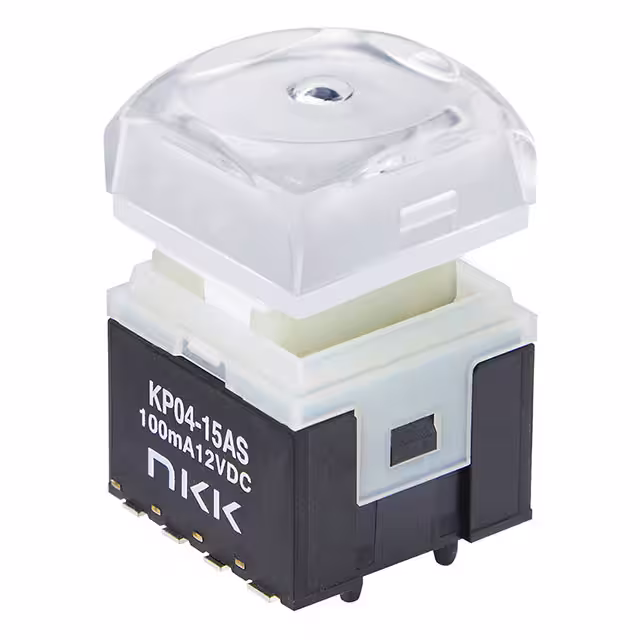

KP0415ASG03RGBP-MT-2TJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
1,103 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.1, 2.65, 2.9 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|

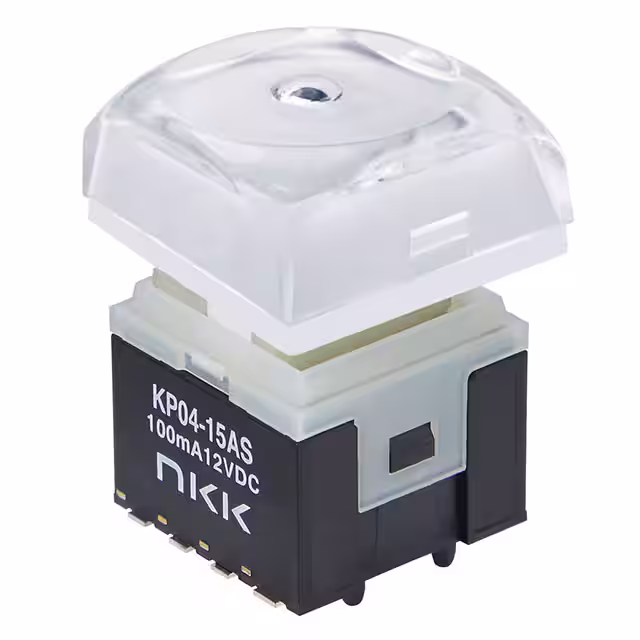

KP0415ASG03RGBP-MT-3TJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
4,329 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.1, 2.65, 2.9 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
MBN15SB1W01-DCLARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
1,336 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SB1W01-DGLARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
4,696 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Blue | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SB1W01-DELARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
2,473 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Yellow | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SB1W01-DFLARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
1,275 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Green | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SB1W01-DBLARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
1,958 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN12SB1W01-ECLARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
4,966 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
LB25SGG01/UCSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
1,879 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
YB25KKW03SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,007 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
