Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP0415ANG03RGBW-MT-3SJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
2,388 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
KP0415ANG03RGBW-MT-3FJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
3,196 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
|
KP0415ANG03RGBW-3FJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
3,817 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
KP0415ASG03RGBW-3SJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
4,494 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
KP0415ASG03RGBW-1SJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
2,023 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
KP0415ASG03RGBW-MT-1FJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
3,631 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|

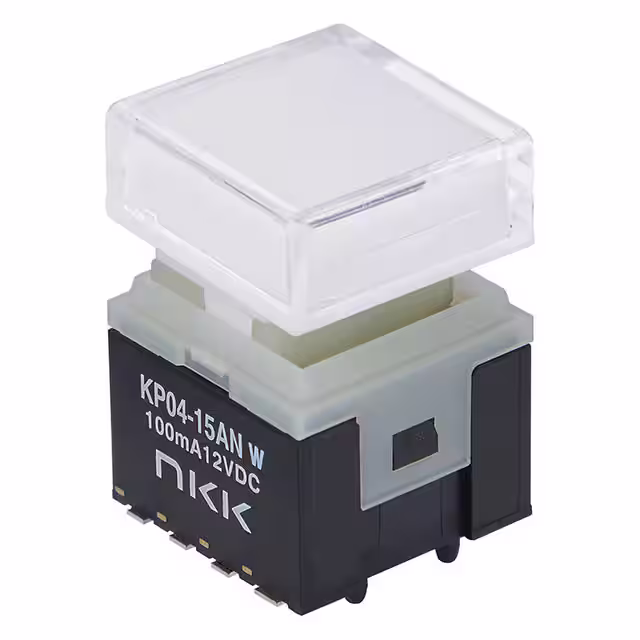

KP0415ANG03RGBW-2FJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
3,088 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
|
KP0415ANG03RGBW-MT-2FJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
3,547 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
KP0415ASG03RGBW-MT-2FJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
3,472 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
KP0415ANG03RGBW-MT-2SJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
1,719 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
