Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

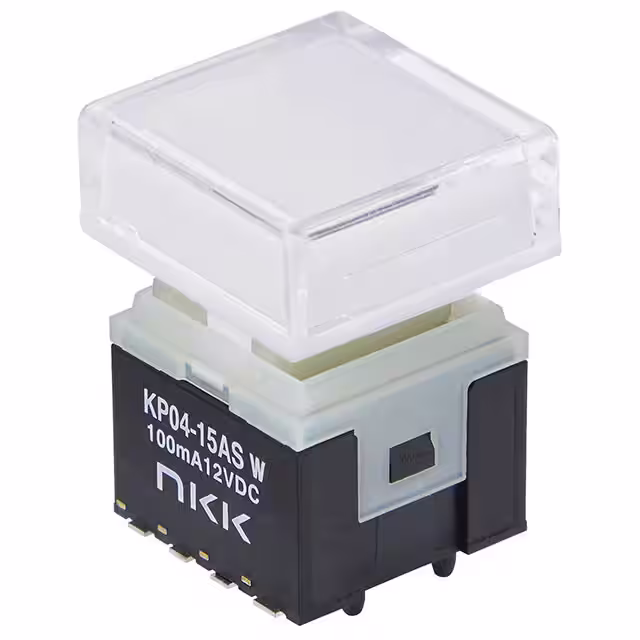

KP0415ASG03RGBW-MT-3FJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
3,003 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
KP0415ASG03RGBW-MT-3SJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
4,014 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red/White | 2.1, 2.65, 2.9, 3.08 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|
MBNR25E1W01-HBSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
2,064 |
|
- |
MB2400 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNR25E1W01-HCSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
1,280 |
|
- |
MB2400 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SS2G45-BABRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
3,205 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN15SS2G45-BBBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
3,185 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBNR25E1W01-HASNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
1,311 |
|
- |
M | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | - |
|
|
HB15SKW01-5F-ABSWITCH PUSH SPDT 0.1A 30V NKK Switches |
2,351 |
|
Datasheet |
HB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Black | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
EB2011-A-J23AFCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,160 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
YB25CKG01-F04-JBSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
2,451 |
|
Datasheet |
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile/Audible Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
