Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN12SB1W02-EALARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
1,359 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Quick Connect - 0.062" (1.5mm) | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2061SS1W01-CBSWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
4,578 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2011SS2G45-CCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,911 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2011SS2G45-CBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,820 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2011SS2G45-CGSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,370 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
LB16CGW01-FSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,391 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
LB16CGW01-CSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,845 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
UB25KKG015C-JBLOW PROFILE PUSHBUTTON NKK Switches |
3,092 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
SCB15P10D-1ASWITCH PUSHBUTTON SPDT 10A 125V NKK Switches |
1,472 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|

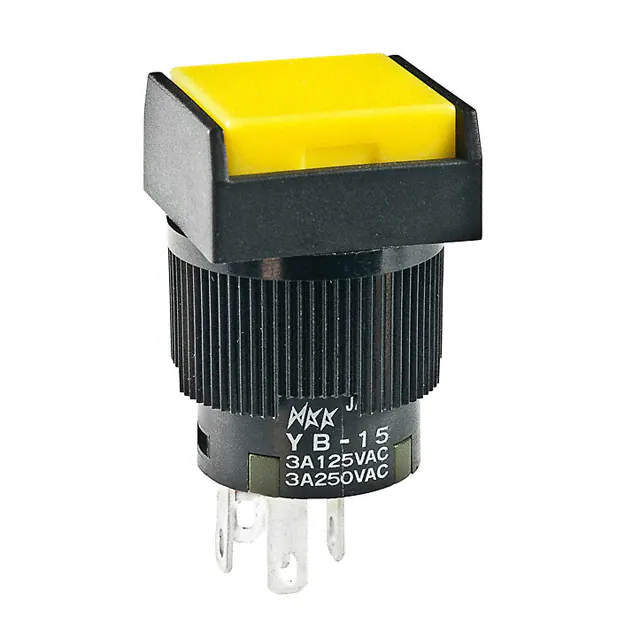

YB15SKW01-EBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,671 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
