Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN12SS2W30-BABRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
1,332 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN12SS2W30-BCBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
4,533 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN12SS2W30-BBBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
1,668 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
UB25RKG035C-JBLOW PROFILE PUSHBUTTON NKK Switches |
1,741 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | - | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|

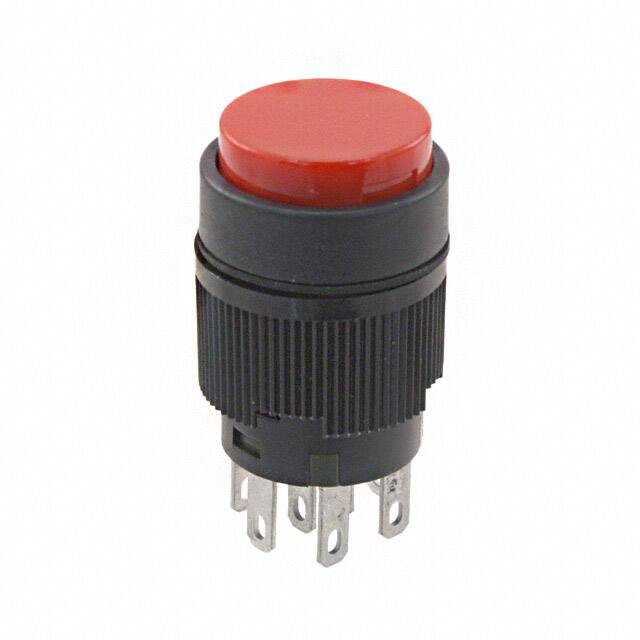

YB25WCKW01-12-CBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,577 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB16RKW01-1F12-JFSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,040 |
|
Datasheet |
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
MBN12SS2W30-CCBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
1,105 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
UB16KKG015C-ABSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,359 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB25SKW035C-ABSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,383 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
|
MBN15SB1G01-EBLARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
2,044 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
