Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN12SS2G30-BBBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
2,326 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN12SS2G30-BGBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
1,480 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Blue | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN12SS2G30-BFBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
3,421 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Green | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
LB16CKW01-GSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,668 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
UB25NBKW015C-JBSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,075 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
YB15KKW01-FBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,373 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

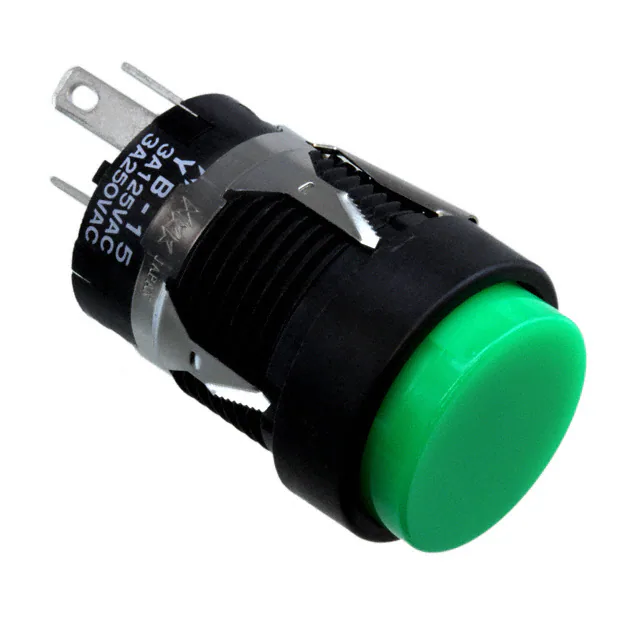

YB15MKW01-FBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,642 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
LB16CKW01-CSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,090 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
YB15KKW01-BBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,523 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB15KKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,346 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
