Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB215KKG01CF-3JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,956 |
|
Datasheet |
UB2 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Pulse 300 ms | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB215SKG03CF-2BSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,482 |
|
Datasheet |
UB2 | Tray | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 50°C |
|
|
KB25CKW01-5F24-JBSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
3,543 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15NKW01SWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,271 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

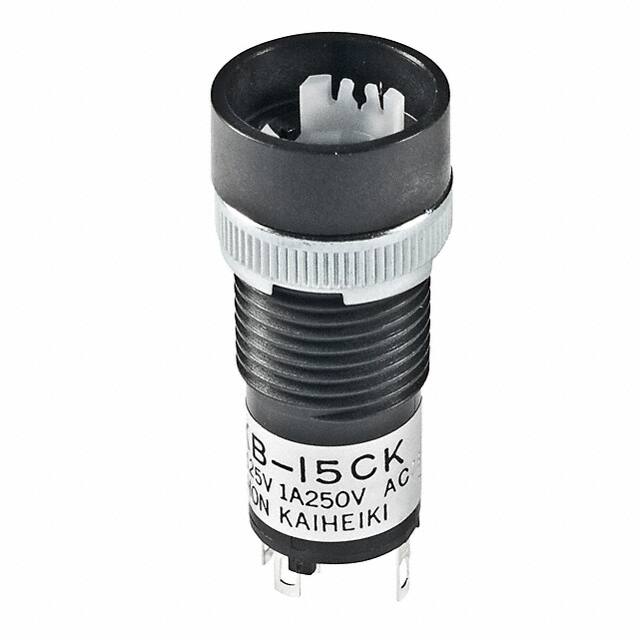

KB15CKW01SWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,724 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB15SKW01SWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,809 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB25SKW01-5F05-JFSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
2,874 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25SKW01-5C05-JCSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
2,944 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
UB216KKW01CF-3JB-ROSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,098 |
|
Datasheet |
UB2 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
KB15MKG01-6G-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,656 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
