Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB15MKG01-5D-JDSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,238 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15MKG01-5F24-JFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,250 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15MKG01-6B-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,537 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

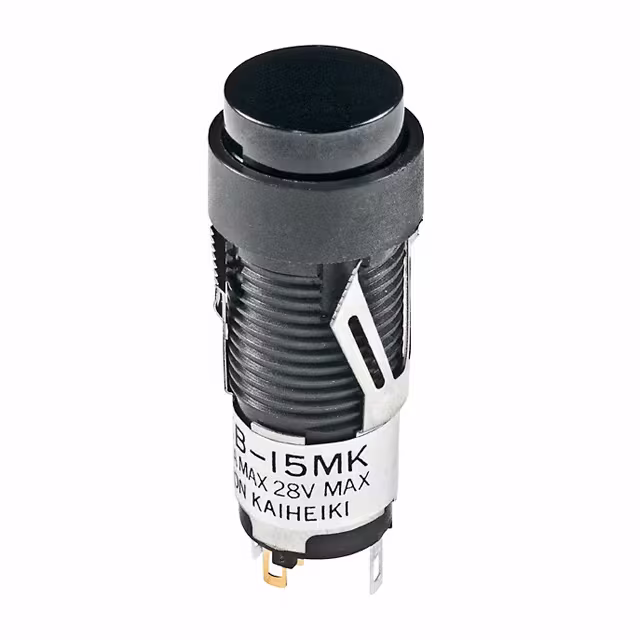

KB15MKG01-ASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,936 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

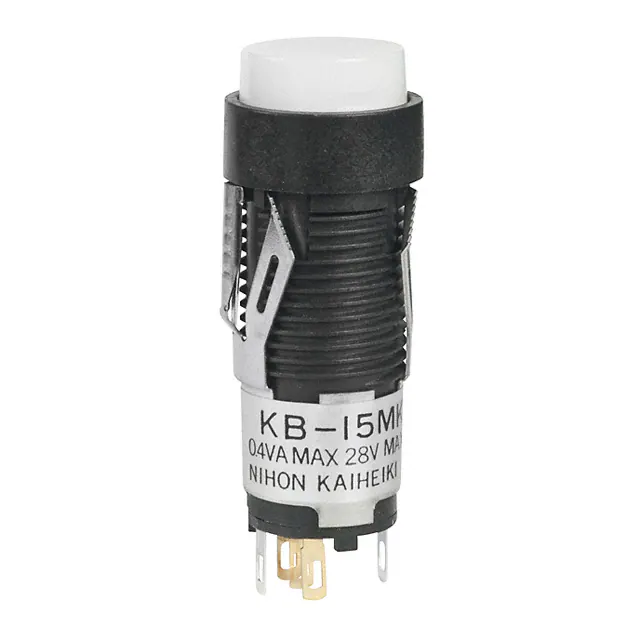

KB15MKG01-BBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,069 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15MKW01-01-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,540 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | Neon, Red | 110 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

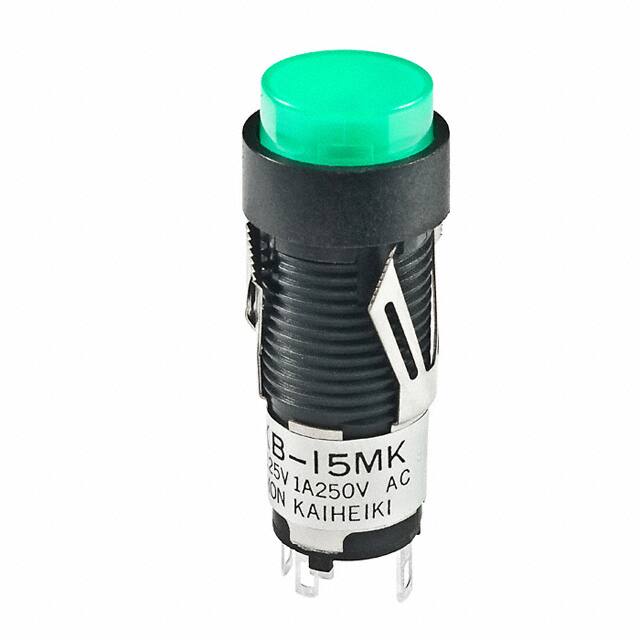

KB15MKW01-05-FBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,490 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15MKW01-12-BBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,833 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | Incandescent, White | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15MKW01-28-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,695 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | Incandescent, Red | 28 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15MKW01-28-EBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,975 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 28 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
