Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

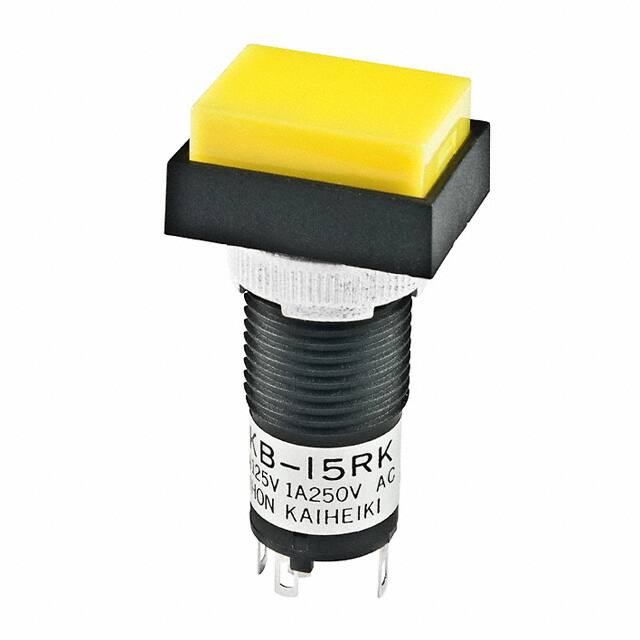

KB15RKW01-28-EBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,426 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 28 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15RKW01-5C05-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,172 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15RKW01-5C24-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,582 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15RKW01BSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,396 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15RKW01B-05-FFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,234 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | Incandescent, Green | 5 VAC | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15RKW01B-5F24-JFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,981 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15RKW01B-5F-JFSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,205 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15RKW01B-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,083 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | - | - | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

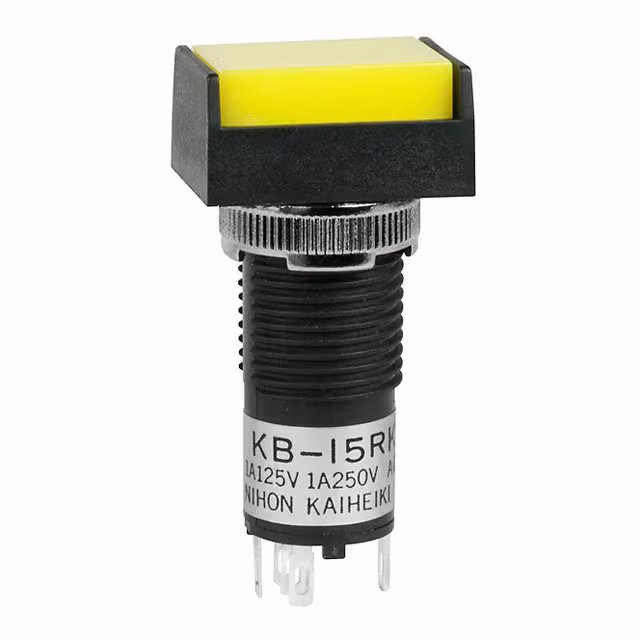

KB15RKW01B-EBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,798 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15RKW01-CCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,744 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
