Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

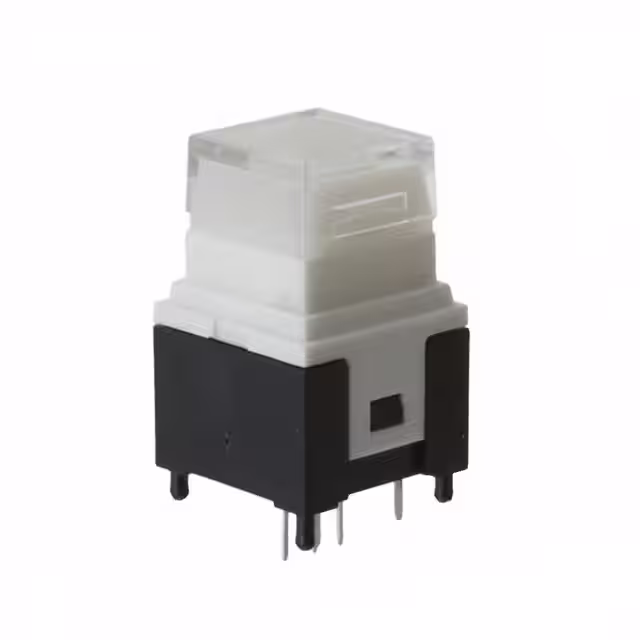

KP0115ANAKG036CF-1TJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
1,237 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

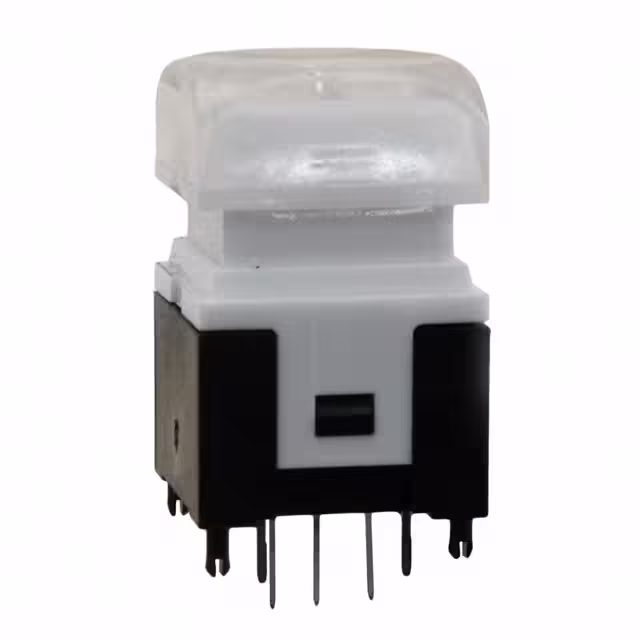

KP0115ACBKG036CF-2TJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
3,333 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|

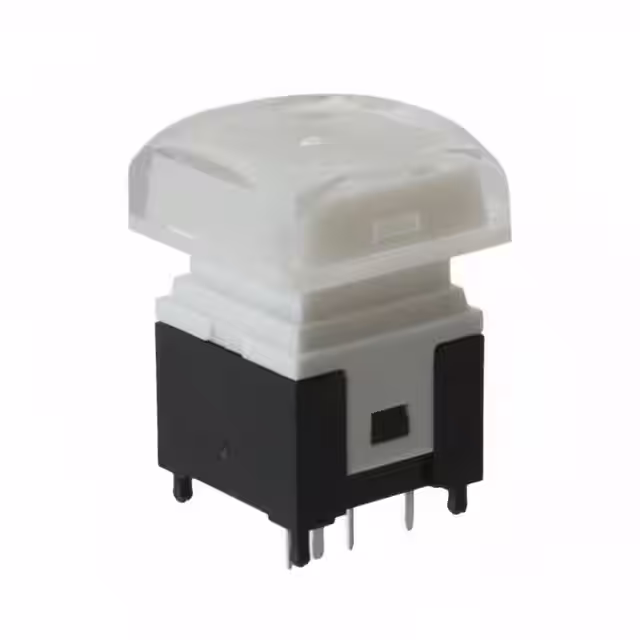

KP0115ANBKG036CF-2TJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
3,956 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
KP0115ACBKG036CF-3TJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
4,781 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
KP0115ANBKG036CF-3TJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
3,038 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
MB2181SB3W06SWITCH PUSHBUTTON 4PDT 6A 125V NKK Switches |
1,495 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Wire Wrap | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
MB2061SS1A01-CASWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
2,287 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

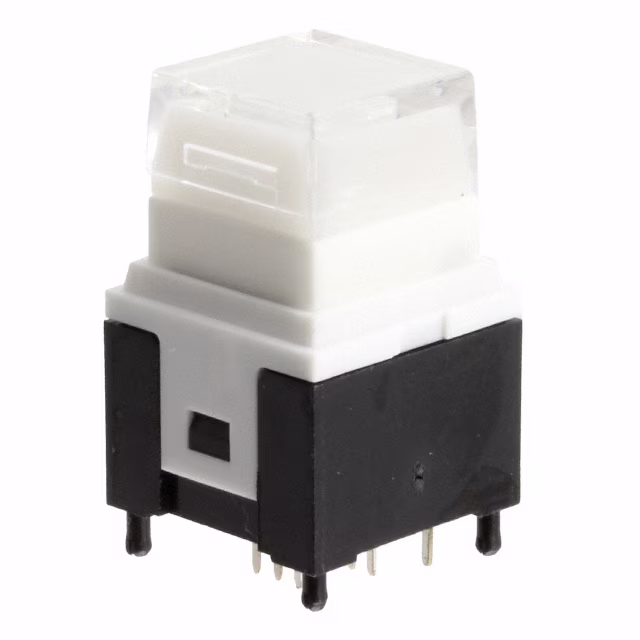

KP0115ACAKG03RGB-1FJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
2,197 |
|
Datasheet |
KP | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|

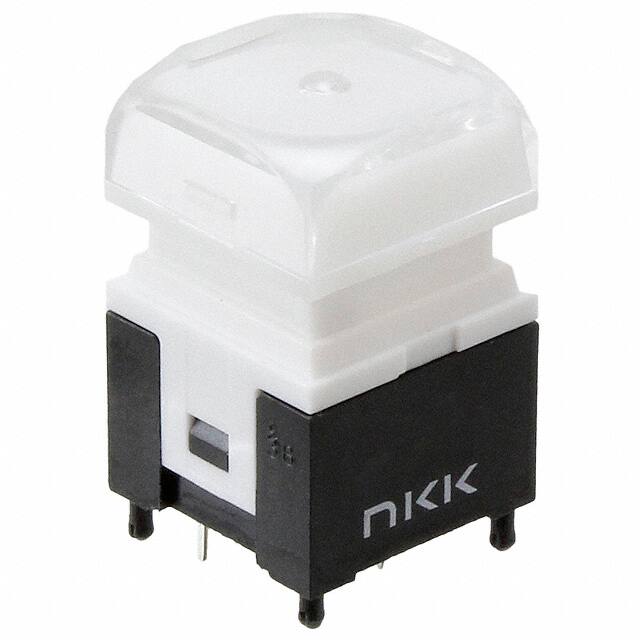

KP0115ACBKG03RGB-2TJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
3,045 |
|
Datasheet |
KP | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|

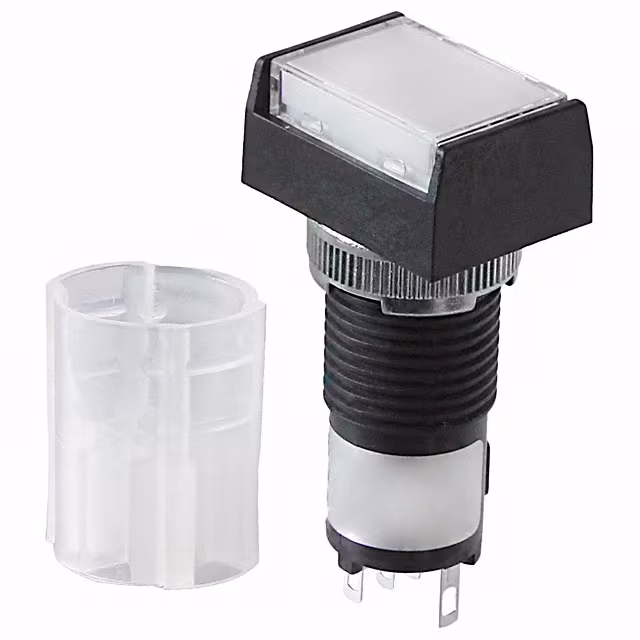

KB15RKW01B-5C-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,635 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 50°C |
