Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

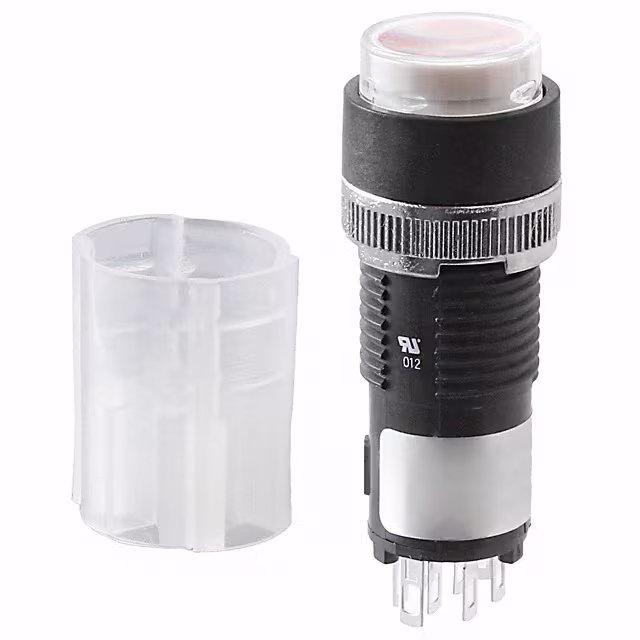

KB25CKW01-5C24-JCSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
4,042 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KP0115ACBKG03RGB-3FJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
4,304 |
|
Datasheet |
KP | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|

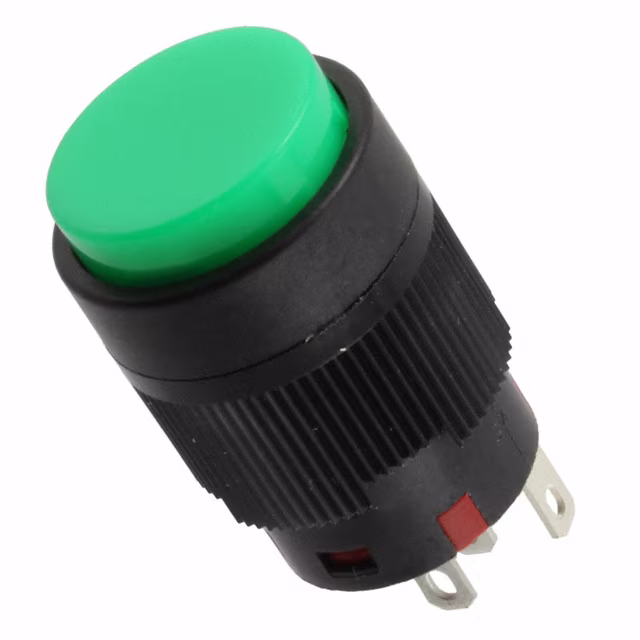

YB15CKG01-12-FBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,396 |
|
Datasheet |
YB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

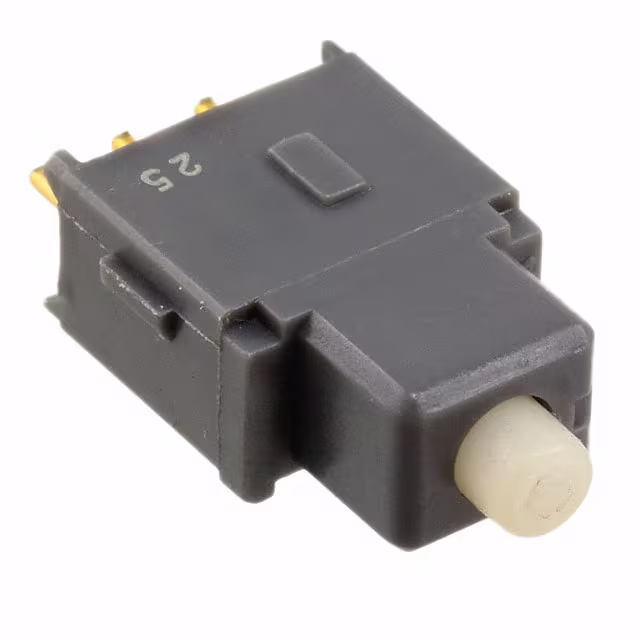

AB15CPSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,574 |
|
Datasheet |
AB | Tray | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
EB2011-A-J22ACSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,403 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
FP0115CAC1BC-C3CONTACTLESS/PUSHBUTTON/ILLUMINAT NKK Switches |
4,294 |
|
Datasheet |
FP01 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | White | LED, Red | 1.85 VDC | Connector | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
|
FP0115CAC1BF-C3CONTACTLESS/PUSHBUTTON/ILLUMINAT NKK Switches |
3,259 |
|
Datasheet |
FP01 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | White | LED, Green | 2.25 VDC | Connector | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
|
FP0115CAC1CC-C3CONTACTLESS/PUSHBUTTON/ILLUMINAT NKK Switches |
2,415 |
|
Datasheet |
FP01 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Red | LED, Red | 1.85 VDC | Connector | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
|
HB15CKW01-A/1SWITCH PUSH SPDT 0.1A 30V NKK Switches |
1,298 |
|
Datasheet |
HB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
KB15CKG01-05-CBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,244 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
