Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E112LD1AV2BESWITCH PUSH SPDT 0.4VA 20V C&K |
3,407 |
|
Datasheet |
E010 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

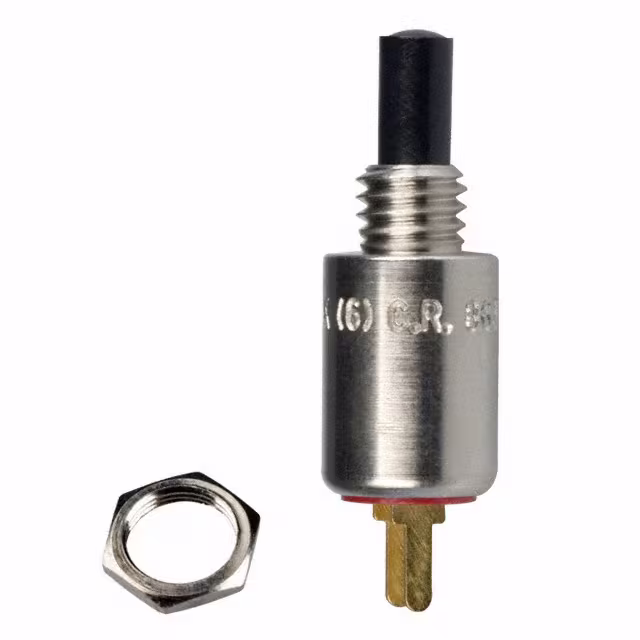

8632CBD2SWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,703 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
8633ZQE3SWITCH PUSH SPST-NC 0.25A 120V C&K |
2,510 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 250mA (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
TP12SHAQESWITCH PUSHBUTTON SPDT 1A 120V C&K |
2,150 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
8632ZQD3Linear IC's C&K |
3,070 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC/DC) | 120 V | 28 V | Plunger for Cap | - | Red | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|

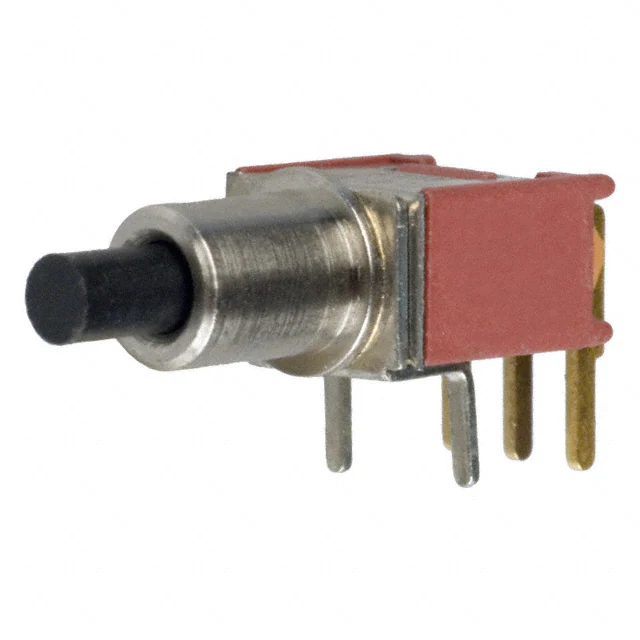

TP12SH8AGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,928 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
TP11SH8AGESWITCH PUSH SPST-NO 1A 120V C&K |
3,265 |
|
Datasheet |
TP | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
EP12SD1CGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,539 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
TP11SHWQESWITCH PUSH SPST-NO 1A 120V C&K |
1,357 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|

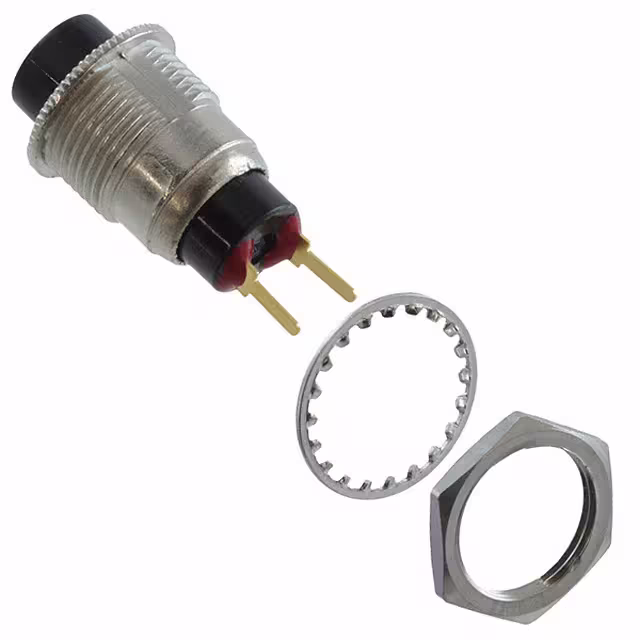

8532T1CBE2SWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,119 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
