Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP12SD1AQESWITCH PUSHBUTTON SPDT 1A 120V C&K |
2,813 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

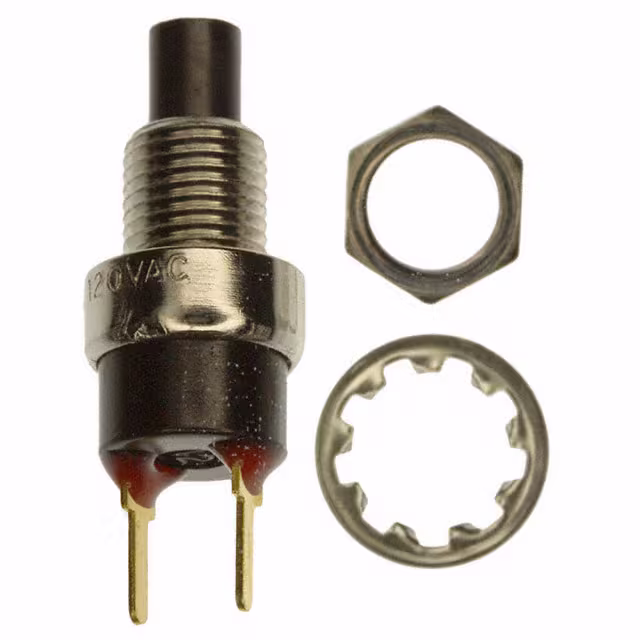

8534SCGE2SWITCH PUSH SPST-NC 1A 120V C&K |
1,452 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

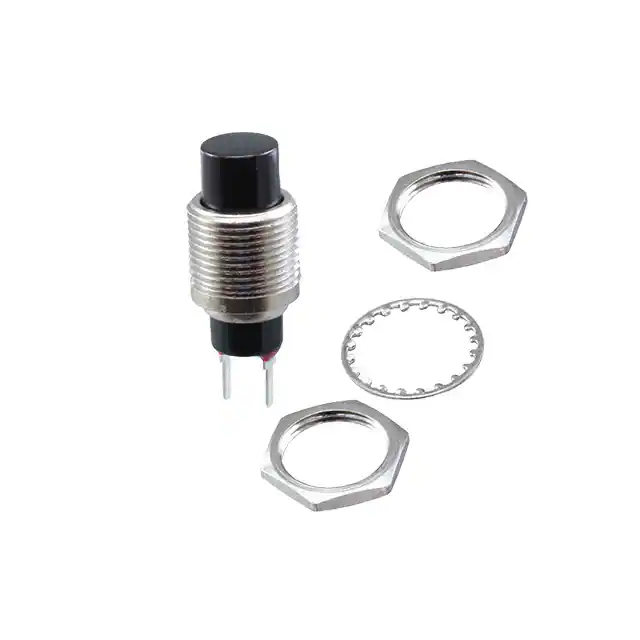

8551TCQE2SWITCH PUSH SPST-NO 3A 120V C&K |
1,281 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
TP12SHZBESWITCH PUSH SPDT 0.4VA 20V C&K |
1,049 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
EP12SD1WBESWITCH PUSH SPDT 0.4VA 20V C&K |
4,403 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
8168S2H9AV2PE2PUSHBUTTON SWITCHES PUSHBUTTON C&K |
1,519 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
NE18 2A EE 6AMPSWITCH PUSHBUTTON DPST 6A 250V C&K |
1,304 |
|
Datasheet |
NE18 | Tray | Active | Through Hole, Right Angle | Standard | DPST | Off-On | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Dust Proof | - | - | - |
|
|
EP11S1D1APESWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,343 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
REL BAR F4X12.5 NICKEL PLTDSWITCH PUSHBUTTON C&K |
1,461 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EP12SD1WGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,164 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
