Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVA10AH33.5N V2SWITCH PUSH DPST-NO 0.1A 32V C&K |
2,268 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
PVA10AH43.5N V2SWITCH PUSH DPST-NO 0.1A 32V C&K |
2,571 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
PVA10AH4SNA V2SWITCH PUSH DPST-NO 0.1A 32V C&K |
1,050 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA1EEH12.2NSWITCH PUSH DPST 0.1A 32V C&K |
4,540 |
|
Datasheet |
PVA | Bulk | Obsolete | Through Hole | Keyswitch | DPST | Off-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
PVA1EEH43.5N V2SWITCH PUSH DPST 0.1A 32V C&K |
2,552 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST | Off-On | 100mA (DC) | - | 32 V | Square, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
PVA20AH11.7NSNA V2SWITCH PUSH DPDT 0.1A 32V C&K |
2,137 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
PVA2EEH33.5N V2SWITCH PUSH DPDT 0.1A 32V C&K |
2,031 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|

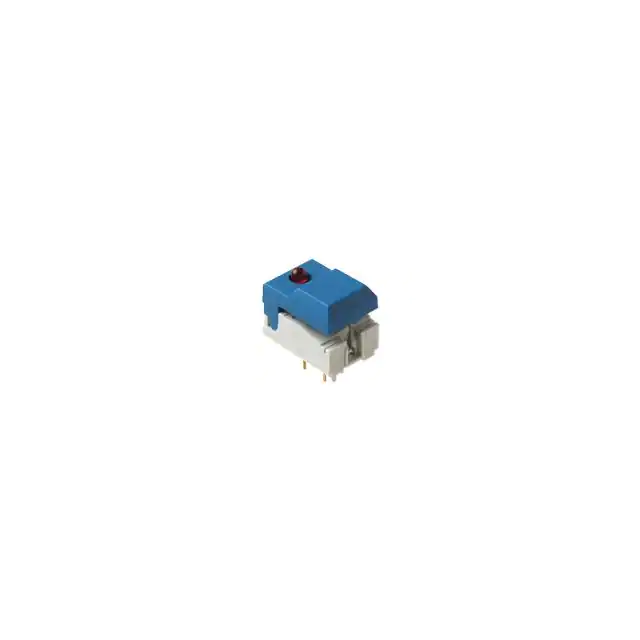

SER2LBUGNYEAU0ASWITCH PUSH SPDT 0.01A 24V C&K |
2,744 |
|
Datasheet |
DIGITAST | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Green/Yellow | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
SER2LGYRDGNAU0ASWITCH PUSH SPDT 0.01A 24V C&K |
2,629 |
|
Datasheet |
DIGITAST | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Gray | LED, Green/Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
SERLGNGNAU0ASWITCH PUSH SPDT 0.01A 24V C&K |
3,912 |
|
Datasheet |
DIGITAST | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Green | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
