Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

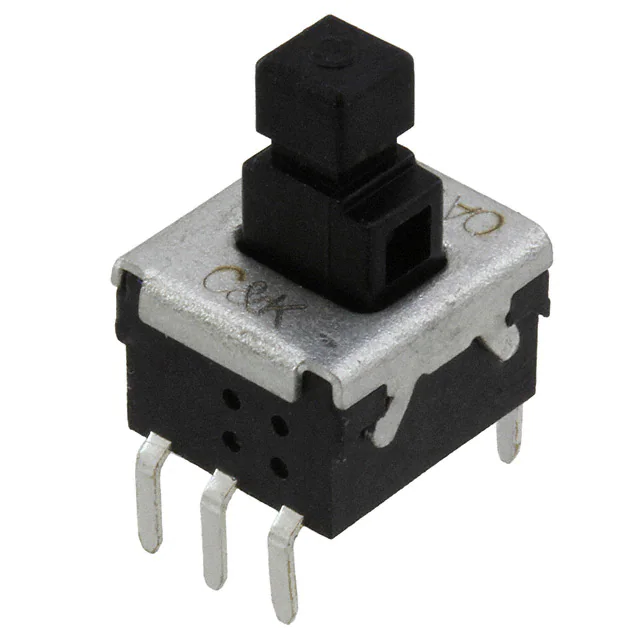

PVB6 THT OA 300 NS LFSSWITCH PUSHBUTTON DPDT 0.2A 14V C&K |
3,642 |
|
Datasheet |
PVB | Tray | Obsolete | Through Hole | Standard | DPDT | On-Mom | 200mA (DC) | - | 14 V | Square, Plunger | No Marking | - | - | - | PC Pin | IP40 | - | - | -40°C ~ 80°C |
|
PS-22F04-G13 NSSWITCH PUSHBUTTON DPDT .3A 30VDC C&K |
2,156 |
|
- |
* | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
K12ALWH15NLV302SWITCH PUSH SPST-NO 0.1A 30V C&K |
1,250 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, White | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
|
K12ALOG12.5NL105KEY SWITCH C&K |
3,523 |
|
- |
K12 | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, Orange | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
|
K12ALOG15NL105KEY SWITCH C&K |
1,407 |
|
- |
K12 | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, Orange | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
|
K12BBK1.52.5NKEY SWITCH C&K |
3,466 |
|
- |
K12 | Bulk | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
K12BBK1.53.5NKEY SWITCH C&K |
4,109 |
|
- |
K12 | Bulk | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
K12BBK2 5NKEY SWITCH C&K |
1,146 |
|
- |
K12 | Bulk | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
K12BBK21.5NKEY SWITCH C&K |
4,406 |
|
- |
K12 | Bulk | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
K12BBK23.5NKEY SWITCH C&K |
1,593 |
|
- |
K12 | Bulk | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
