Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E112SD1A3QESWITCH PUSHBUTTON SPDT 4A 125V C&K |
240 |
|
Datasheet |
E010 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

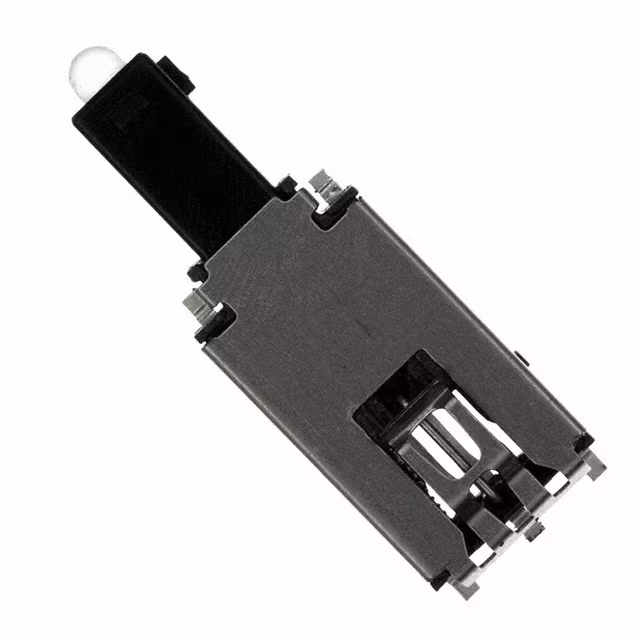

ELUMEESAQ8C22SWITCH PUSH SPDT 0.25A 50V C&K |
244 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Amber/Green | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
ELUMEETHQ1C12SWITCH PUSH SPDT 0.25A 50V C&K |
157 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, White | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
8261J82ZGE22SWITCH PUSHBUTTON DPDT 6A 120V C&K |
157 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
SETL BK GN 7.62 AU EESWITCH PUSH SPDT 0.01A 24V C&K |
106 |
|
Datasheet |
DIGITAST | Tray | Obsolete | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
TP21SHABESWITCH PUSH DPST-NO 0.4VA 20V C&K |
118 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
SERLGYRD7.62AUEESWITCH PUSH SPDT 0.01A 24V C&K |
190 |
|
Datasheet |
DIGITAST | Tray | Obsolete | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Gray | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
F6UEETBAUSWITCH PUSH 6PDT 0.04A 50V C&K |
239 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
D6R40F1LFSSWITCH KEY N.O. SPST 0.1A 32VDC C&K |
15,000 |
|
Datasheet |
D6 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
|
D6C60F1LFSKEY C&K |
4,980 |
|
Datasheet |
D6 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | - | Blue | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
