Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8125SYAV2BESWITCH PUSH SPDT 0.4VA 20V C&K |
1,278 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
U811SD9AGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,308 |
|
Datasheet |
8020 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|

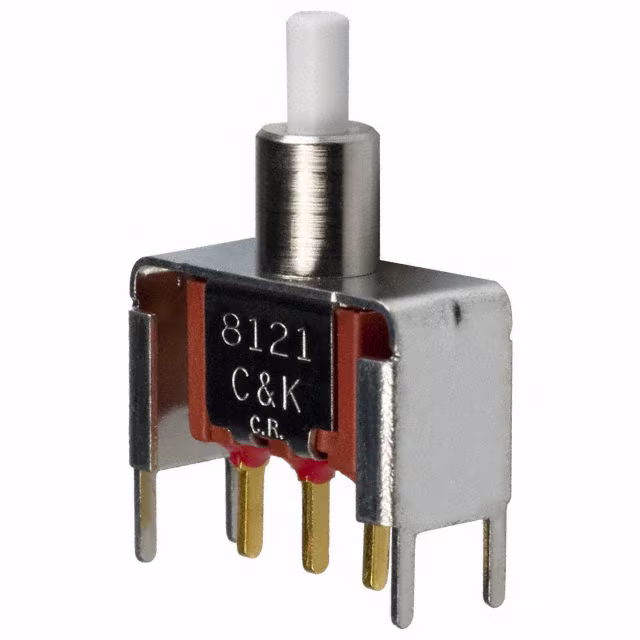

8121SD9V6GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
2,016 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

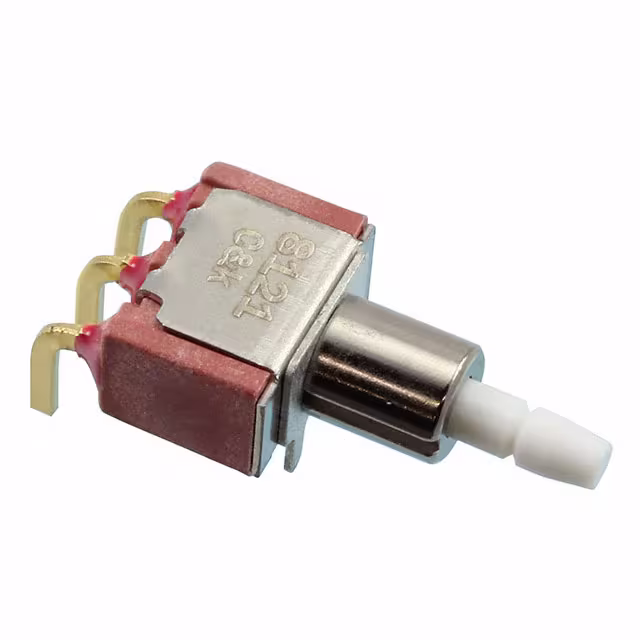

8121MD9AGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,111 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
8121MD9AV2GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
2,536 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

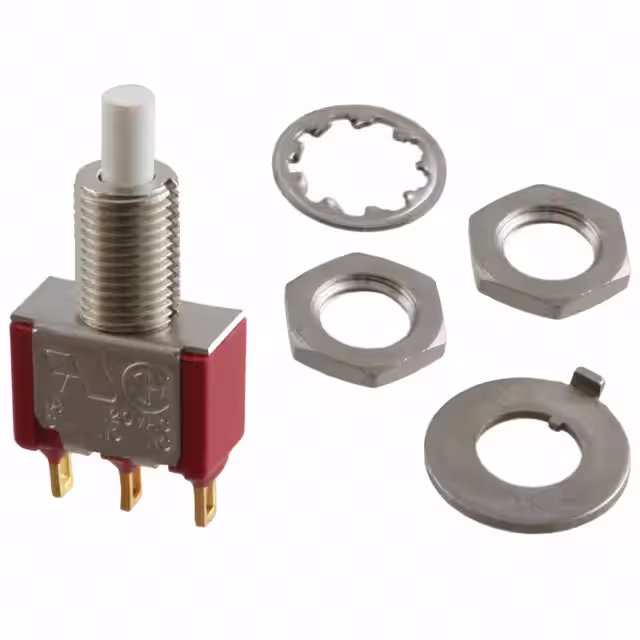

U811SYZGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,511 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
E121SD1V3GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,073 |
|
Datasheet |
E020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
8125J85ZBE223SWITCH PUSH SPDT 0.4VA 20V C&K |
2,924 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|

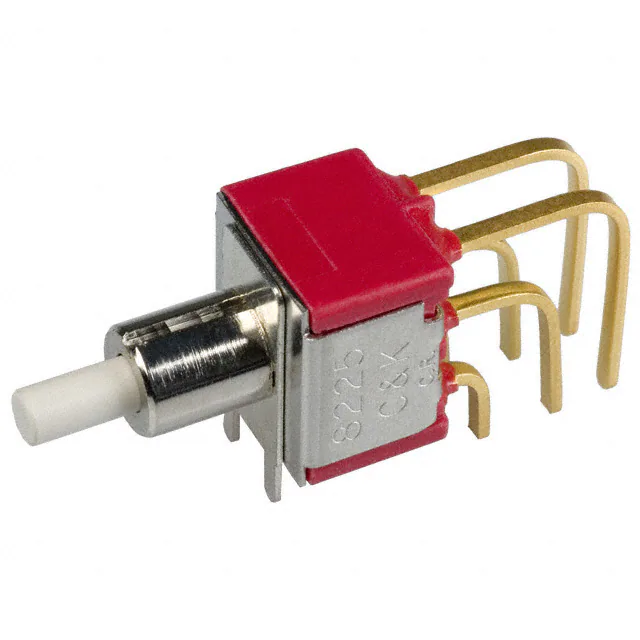

8225SD9AV2BESWITCH PUSH DPDT 0.4VA 20V C&K |
2,935 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
8121SHAV2GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,707 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
