Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

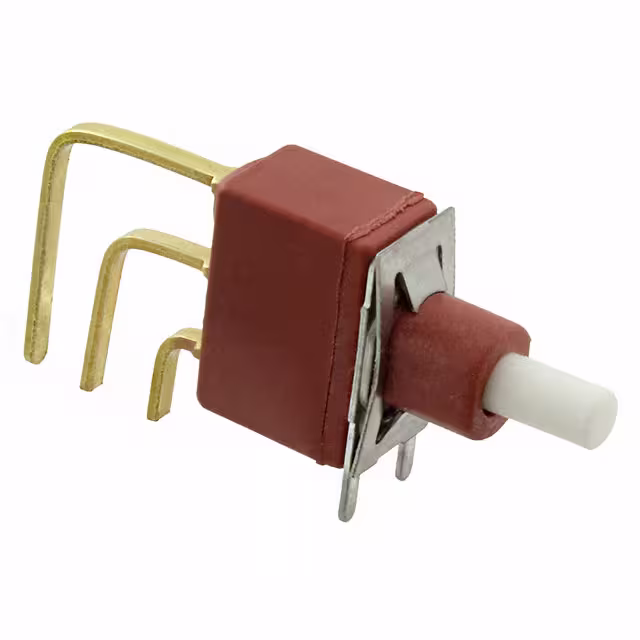

E112SD1AV2QESWITCH PUSHBUTTON SPDT 4A 125V C&K |
1,251 |
|
Datasheet |
E010 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

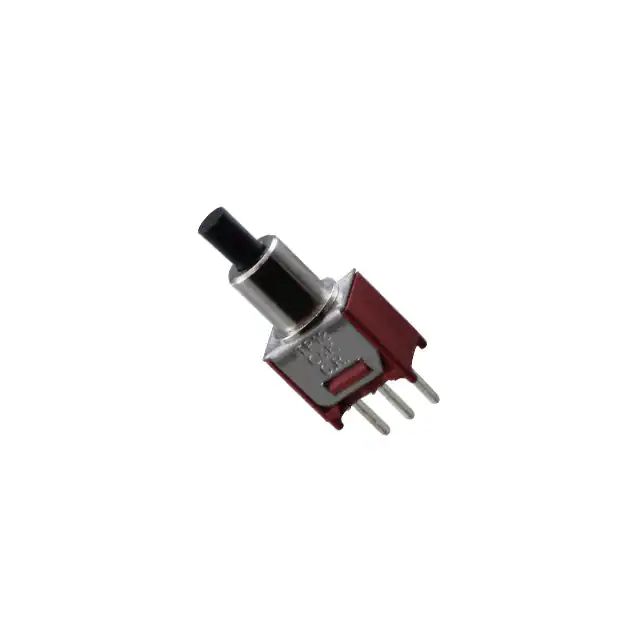

TP12SH8CQESWITCH PUSHBUTTON C&K |
4,849 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

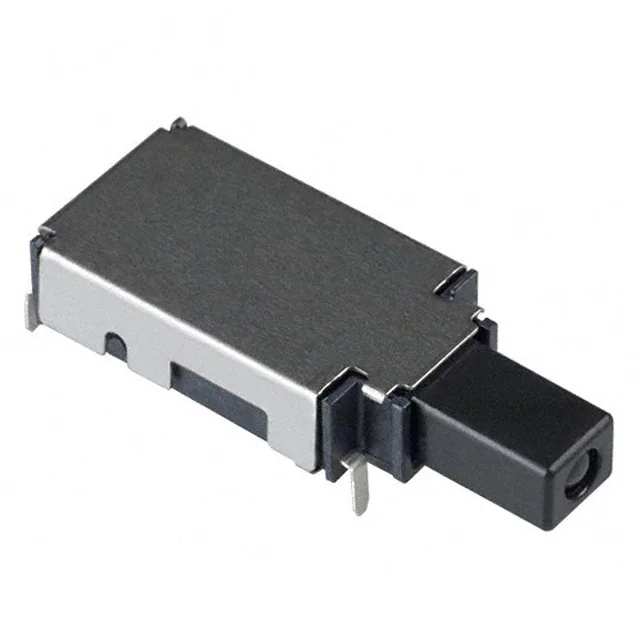

ELUMOATHQ2C12SWITCH PUSH SPDT 0.25A 50V C&K |
2,900 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|

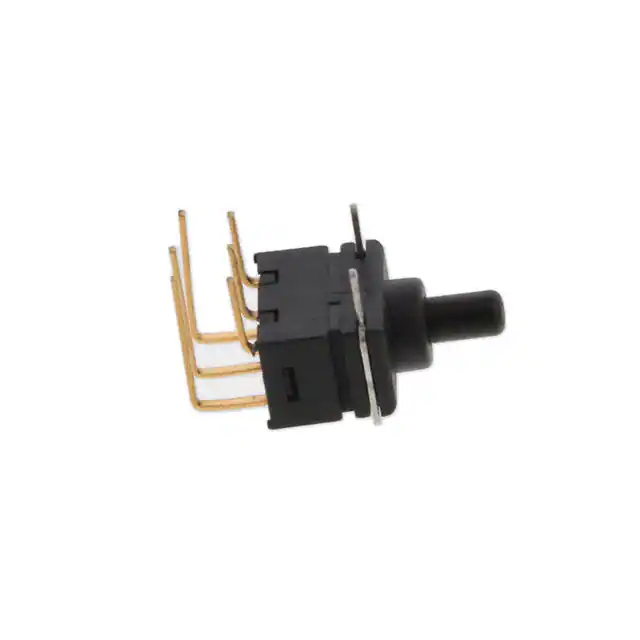

FP22SPA1B1TP00SWITCH PUSH DPDT-NO 0.4VA 28V C&K |
3,589 |
|
Datasheet |
FP | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
8168S2HZGE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
1,124 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

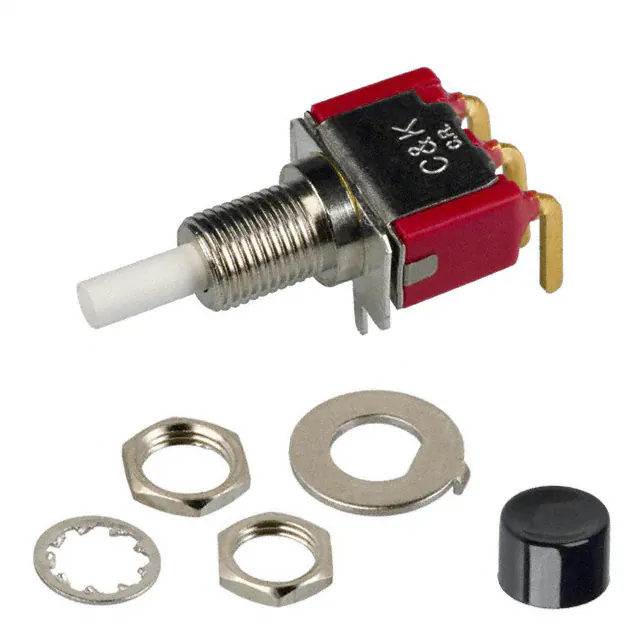

8168SHABE2SWITCH PUSH SPDT 0.4VA 20V C&K |
3,337 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8225SD9CBESWITCH PUSH DPDT 0.4VA 20V C&K |
3,630 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

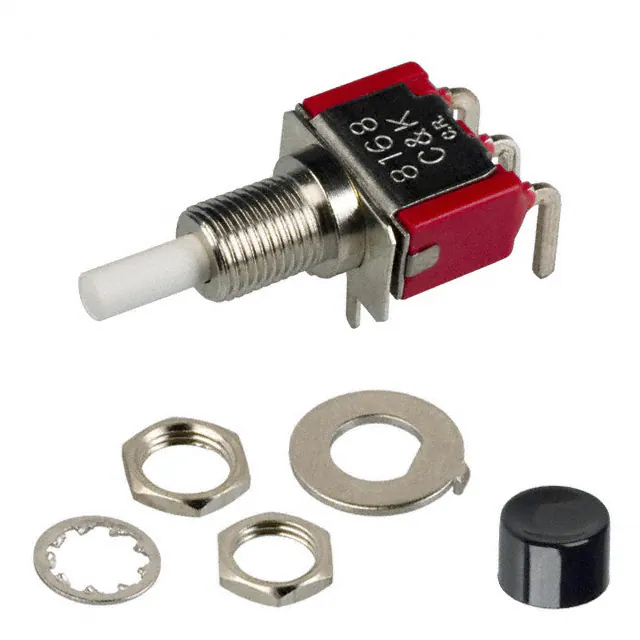

8168SHAQE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,661 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
AP2D300SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,569 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|

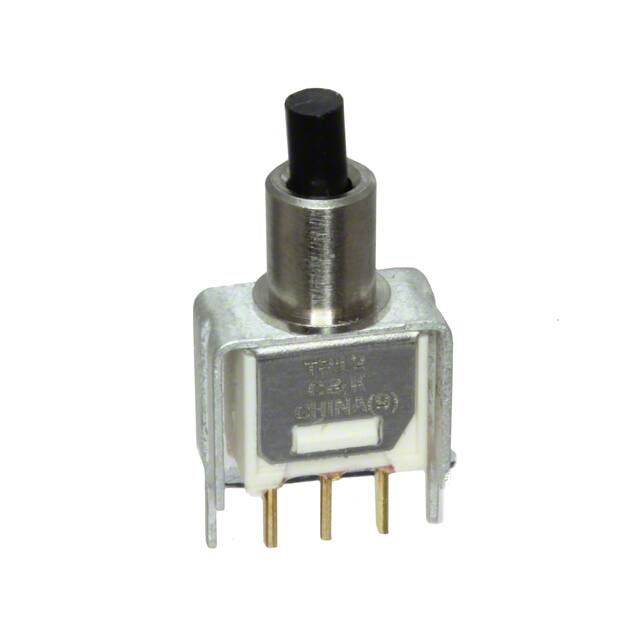

TP12SH8V3BESWITCH PUSH SPDT 0.4VA 20V C&K |
1,229 |
|
Datasheet |
TP | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
