Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F2UEETBAUSWITCH PUSH DPDT 0.04A 50V C&K |
3,144 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
8531MZQE3PUSHBUTTON SWITCHES PUSHBUTTON C&K |
1,953 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | - | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
.jpg)
|
GP12MSCKESWITCH PUSH SPDT 0.4VA 20V C&K |
4,700 |
|
Datasheet |
GP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
EP11SD1V31PESWITCH PUSH SPST-NO 0.4VA 20V C&K |
1,594 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
NE18 2A EE P 6AMPSWITCH PUSHBUTTON DPST 6A 250V C&K |
1,094 |
|
Datasheet |
NE18 | Tray | Active | Through Hole, Right Angle | Standard | DPST | Off-On | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Dust Proof | - | - | - |
|
|
EP11SD1AV3QESWITCH PUSH SPST-NO 1A 120V C&K |
2,729 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
.jpg)
|
GP11MSAKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,096 |
|
Datasheet |
GP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

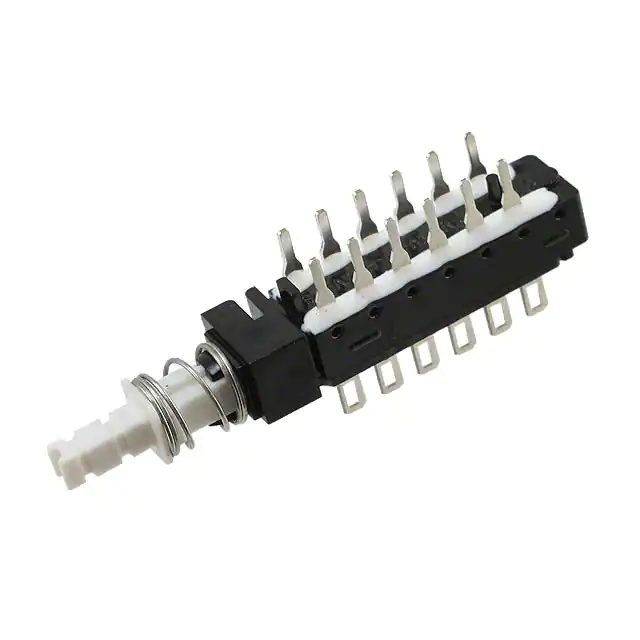

F4UEE TBSWITCH PUSH 4PDT 0.5A 125V C&K |
3,826 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
|
8531MCGE2PUSHBUTTON SWITCHES PUSHBUTTON C&K |
4,010 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
EP11SD1V31QESWITCH PUSH SPST-NO 1A 120V C&K |
1,640 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
