Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

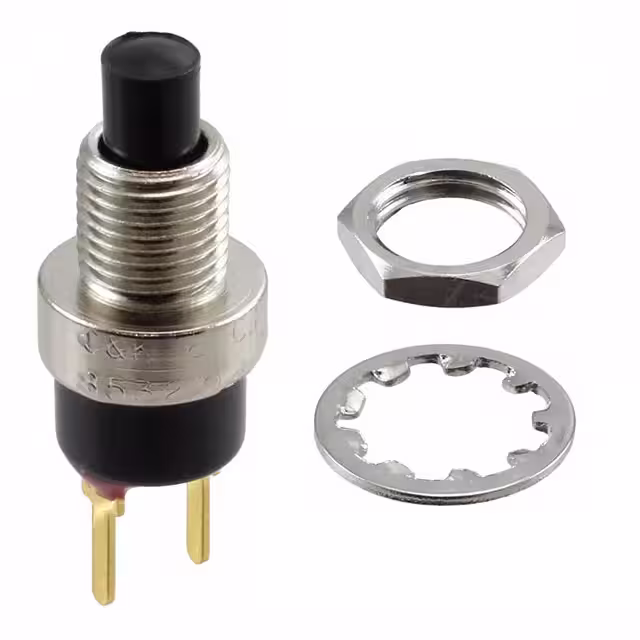

8532MCBE2SWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,700 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
EP11SD1CGEPUSHBUTTON SWITCHES C&K |
4,495 |
|
Datasheet |
EP | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | - | - | -30°C ~ 85°C |
|
|
103-2002-001Linear IC's C&K |
4,351 |
|
- |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | - | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
.jpg)
|
EP12SD1SAKESWITCH PUSH SPDT 0.4VA 20V C&K |
2,996 |
|
Datasheet |
EP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
.jpg)
|
EP12FPD1SAKESWITCH PUSH SPDT 0.4VA 20V C&K |
3,792 |
|
Datasheet |
EP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

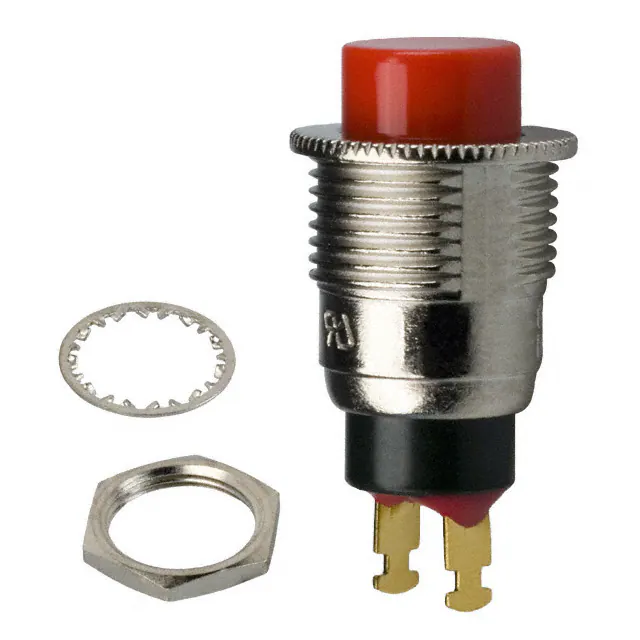

8532T1ZBE3SWITCH PUSH SPST-NO 0.4VA 20V C&K |
4,970 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
.jpg)
|
GP12MSAKESWITCH PUSH SPDT 0.4VA 20V C&K |
4,484 |
|
Datasheet |
GP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
SETLBKRD7.62AU0ASWITCH PUSH SPDT 0.01A 24V C&K |
2,343 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
8531TZQE3SWITCH PUSH SPST-NO 1A 120V C&K |
2,293 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
TP12SHABESWITCH PUSH SPDT 0.4VA 20V C&K |
1,278 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
